Designed for 24/7 Operation

Featuring dual power supplies and optimized heat dissipation for 24/7 operation, Modator 2U is well-suited to use cases with high reliability requirements.

Independent Encoding & Decoding

Each installed module can work independently to convert high-quality video and audio signals to and from IP streams.

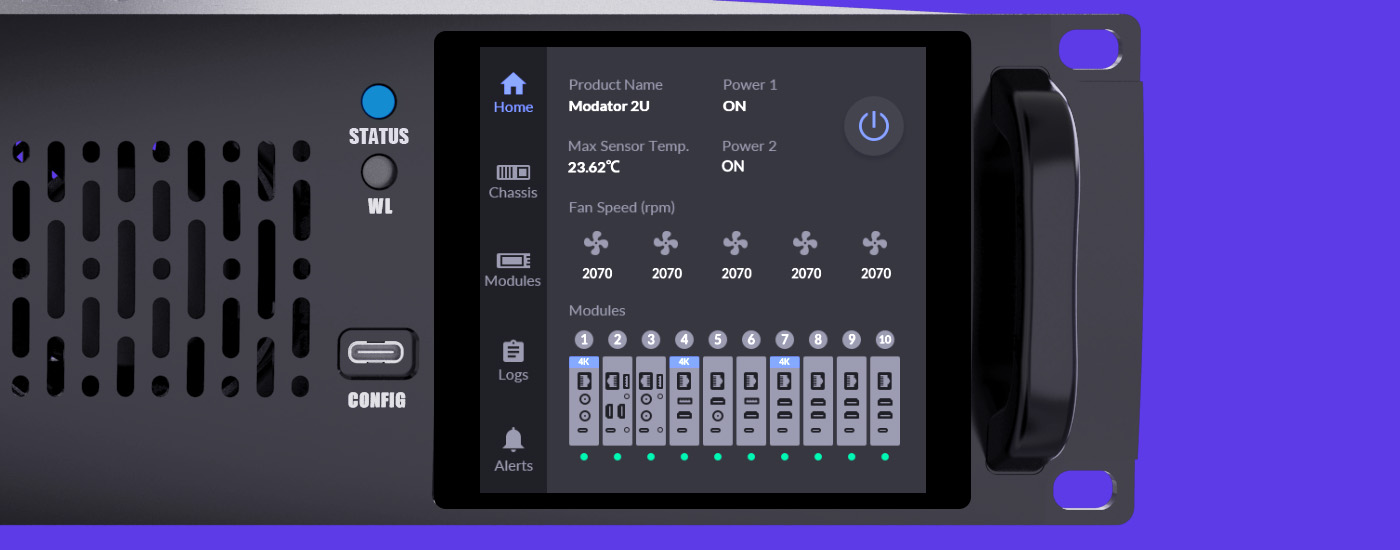

LED Touch Screen

Through the LED touch screen, users can turn the chassis on or off; view the status of the chassis and each installed module; and configure network settings.

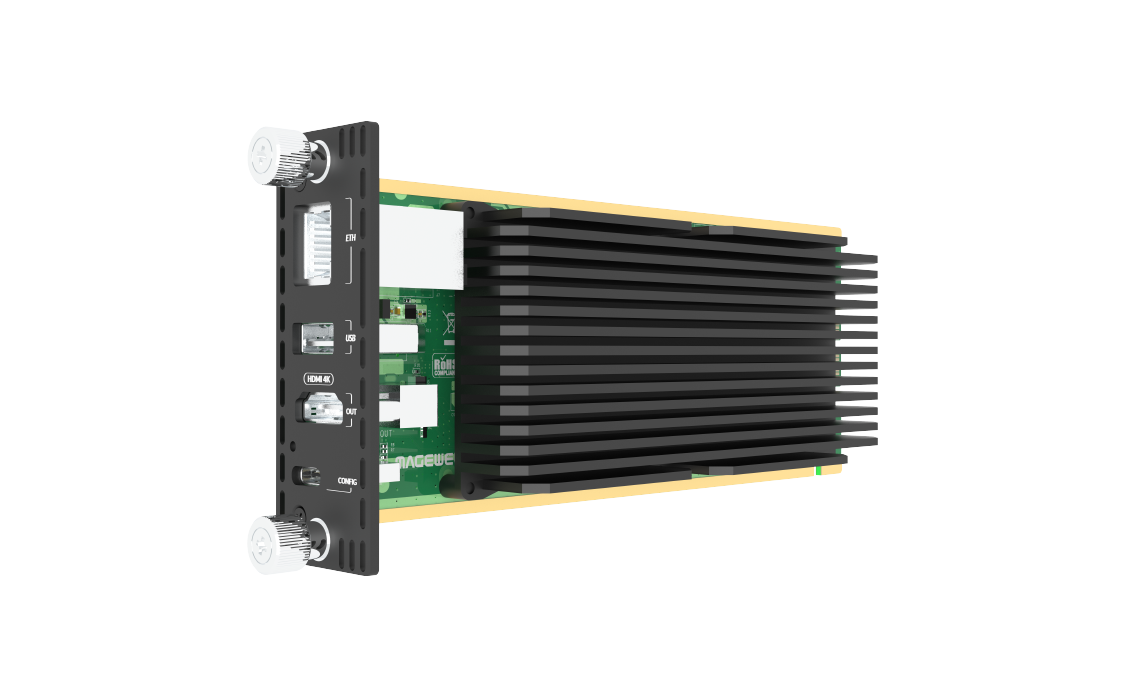

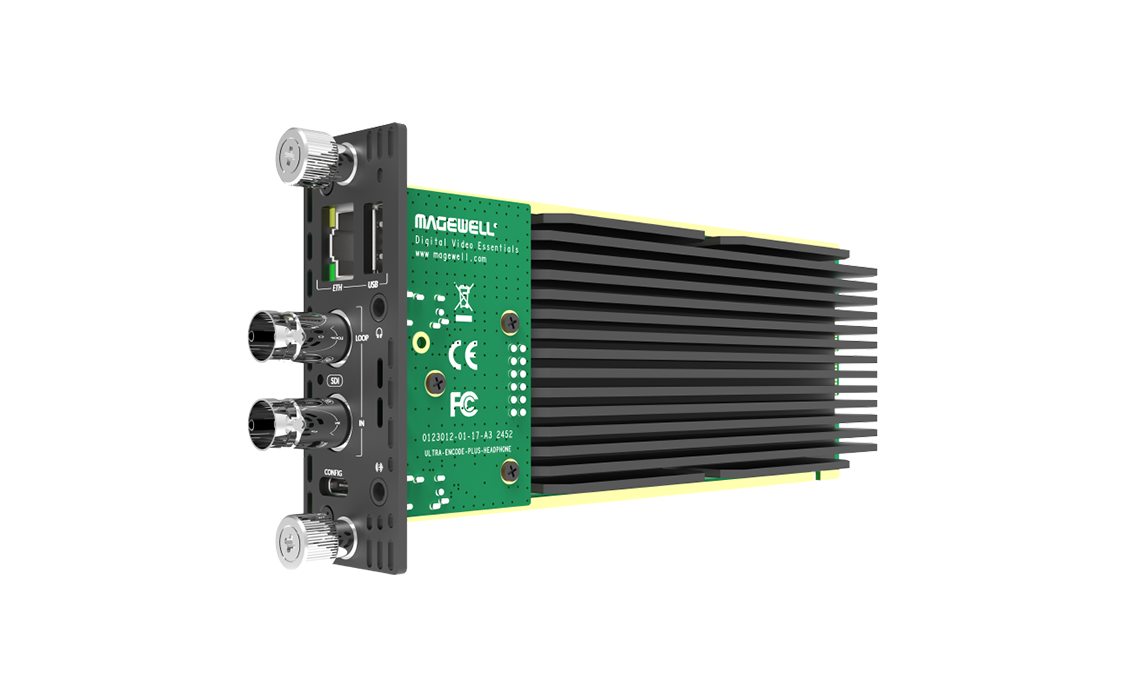

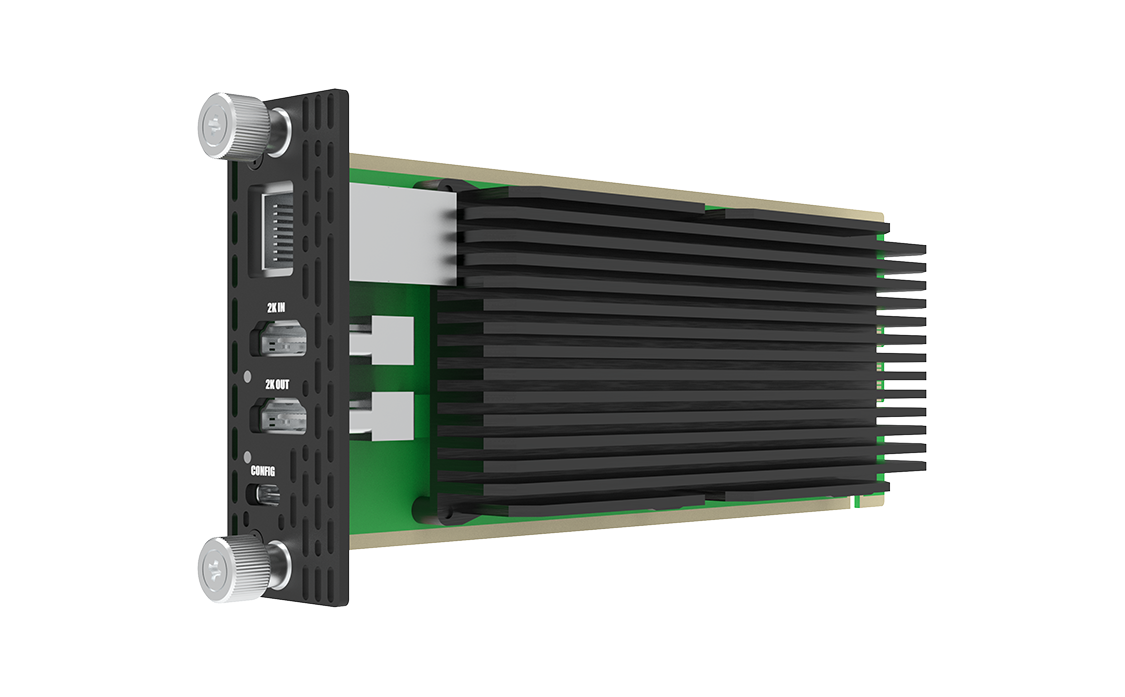

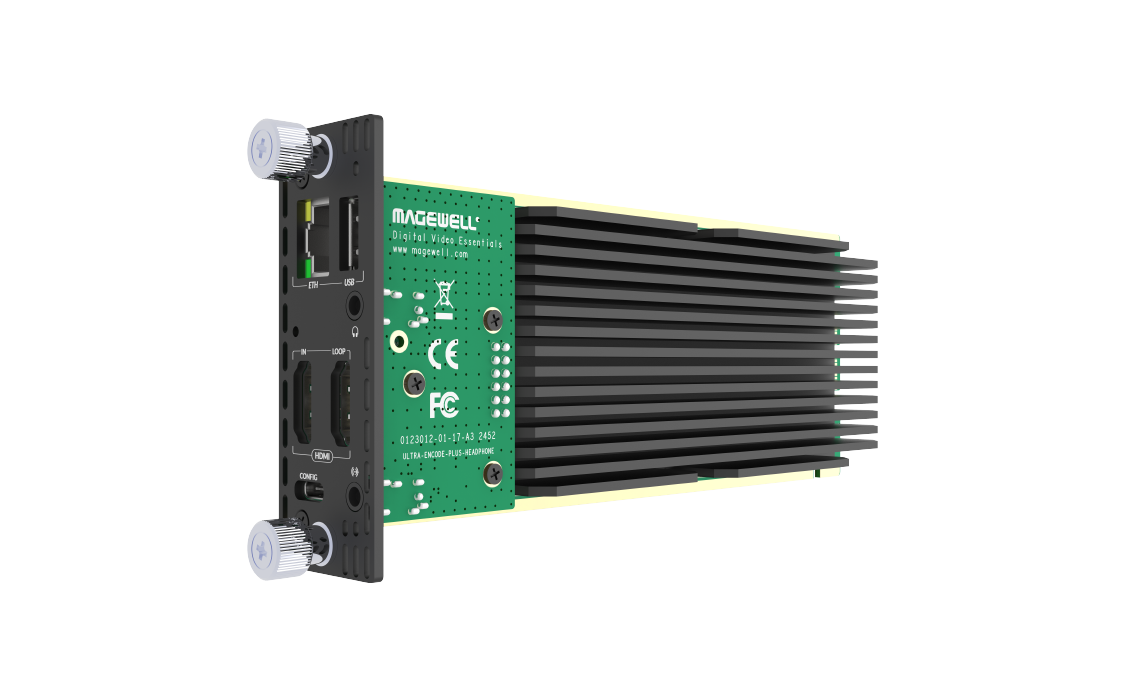

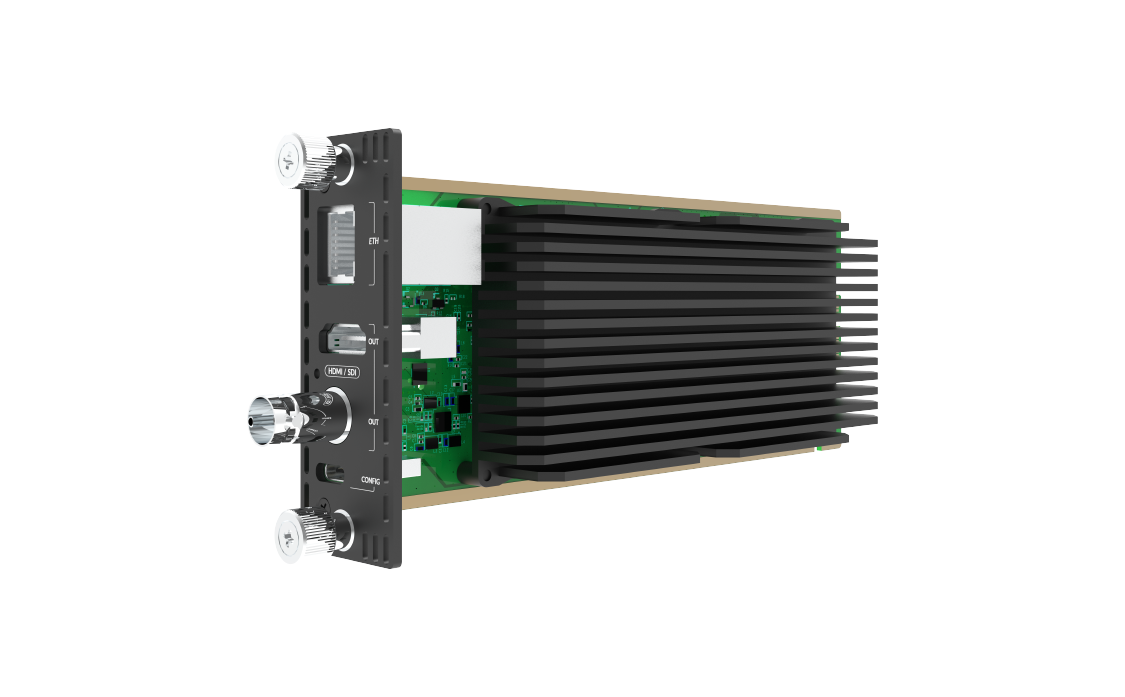

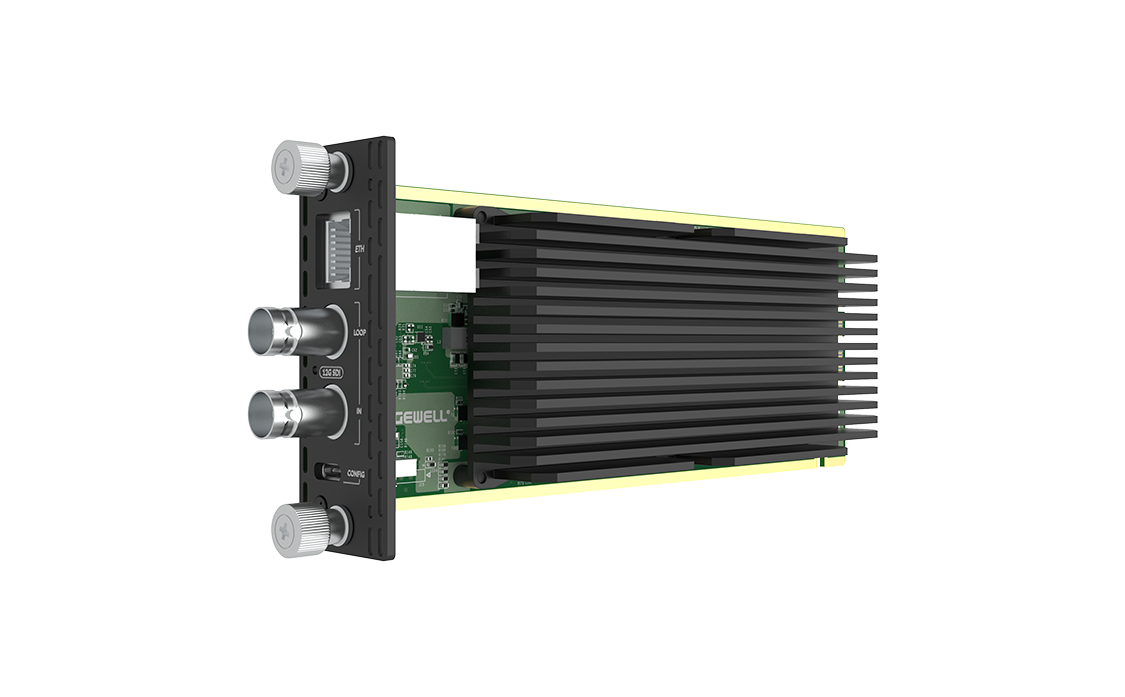

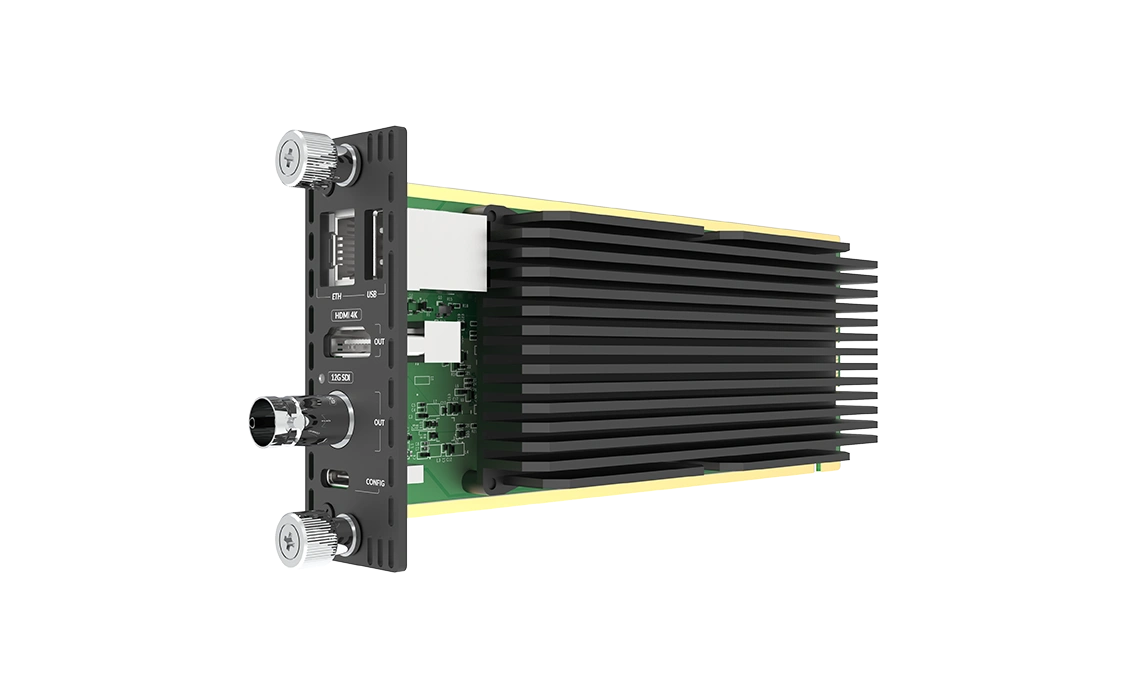

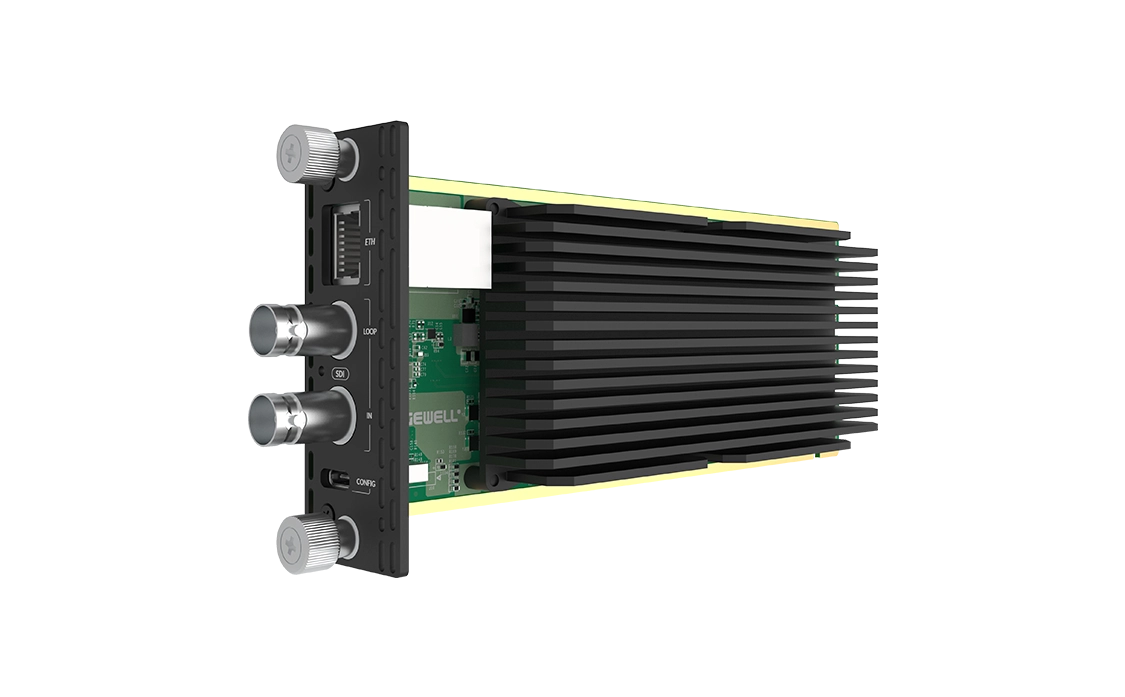

Mix-and-match your choice of Modator modules

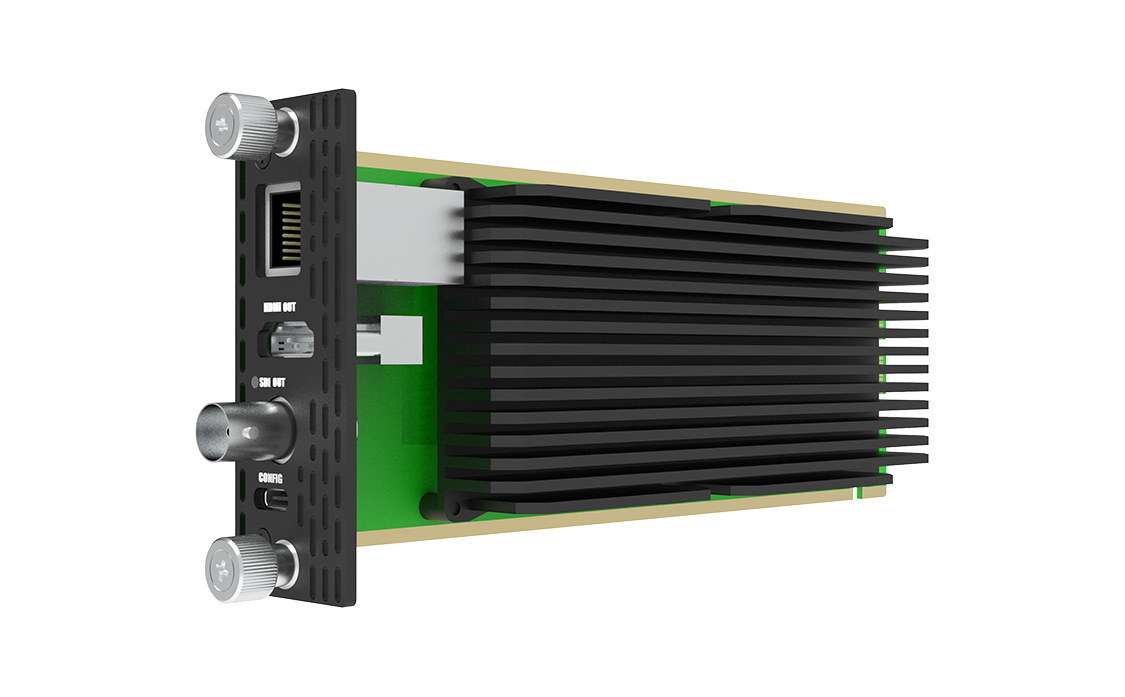

Pro Convert for NDI® to AIO Module

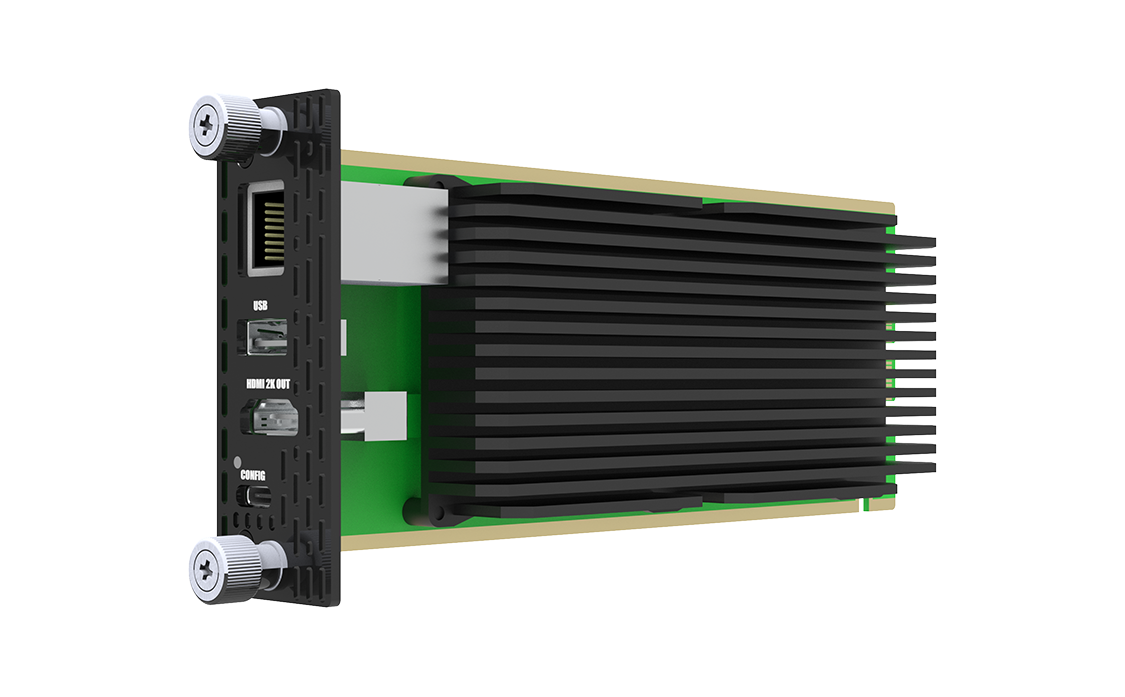

Pro Convert for NDI® to HDMI Module

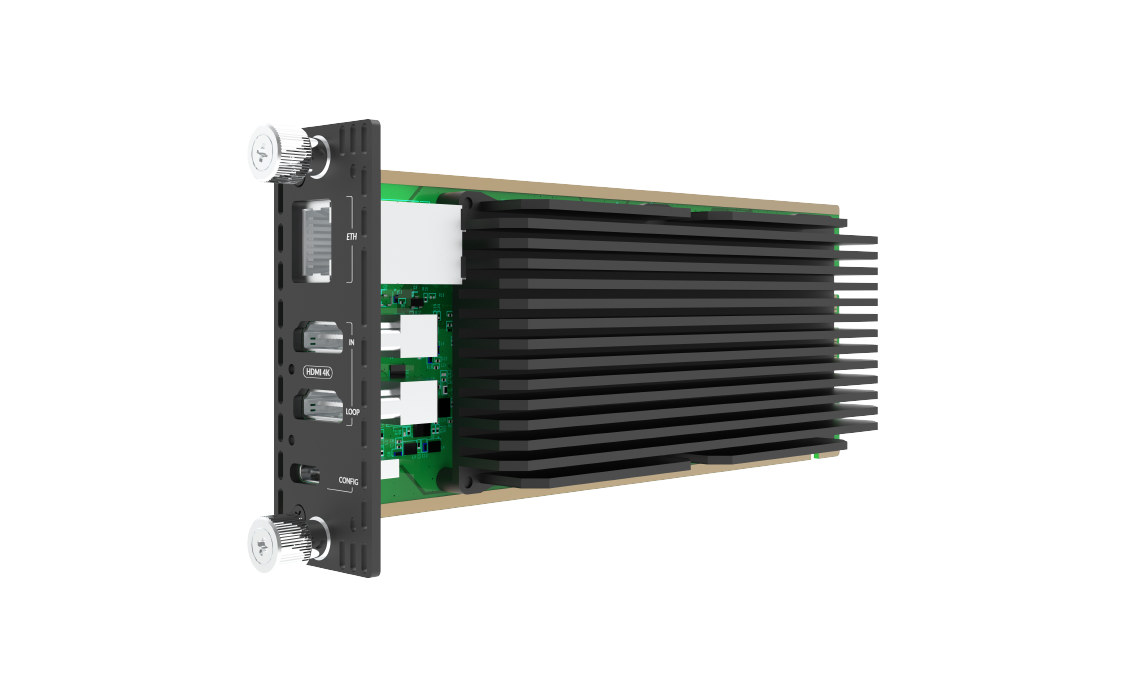

Pro Convert HDMI 4K Plus Module

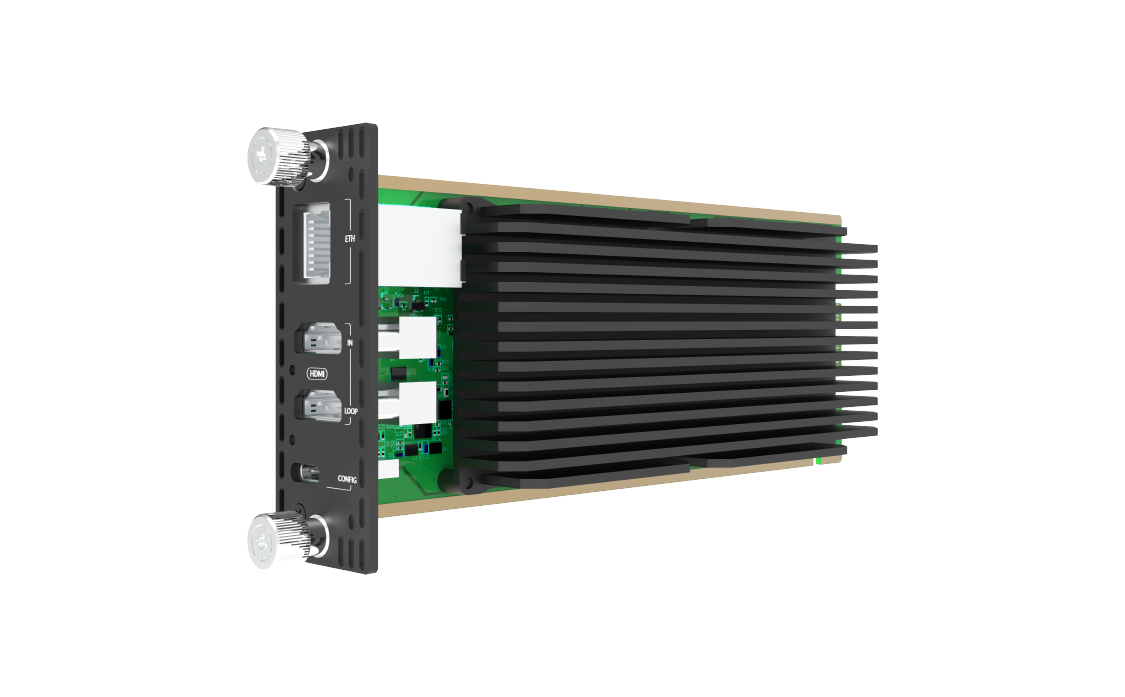

Pro Convert HDMI Plus Module

Product Info

Modator 2U

Delivers the robust capabilities of Magewell’s IP encoders and decoders in a scalable, high-density form factor

SKU: B52200000T

  • Each installed encoding or decoding module independently provides high-quality conversion
  • Dual power supplies and optimized heat dissipation for 24/7 operation
  • LED touch screen provides status monitoring of the chassis and modules
Specifications and Features

Interfaces

  • 10* Modator slots supporting hot swap of Magewell modules
  • 1* RJ45 1000Mbps Ethernet port
  • 1* USB Type-C port for configuration

Power and Power Consumption

  • Hot-swappable dual power supply
  • AC: 100-240V, 7-3.5A, 60/50Hz
  • Maximum power consumption of the chassis: 200W
  • Maximum power consumption of each slot: 20W
  • Different power cords: ELE00039 (US), ELE00040 (UK), ELE00041 (EU, KR), ELE00042 (AU), ELE00043 (JP)

Others

  • Touchscreen dimension: 91mm x 81mm
  • Browser-based web user interface for the chassis and modules information
  • HTTP-based APIs for custom integration
  • 1-year warranty
  • Form factor: 482mm (L) x 275mm (W) x 88mm (H)
Firmware
Firmware
document document Download

V1.0.153

History version Arrow Arrow

91.4 MB | 2024.10.21

Descriptions:
  1. Update the touchscreen UI and Web UI.
  2. Update some APIs.
  3. Fix known issues.
Documents
Documents User Manual for Modator 2U
English | 6.37 MB | 2024/10/21
Documents Datasheet of Modator 2U
English | 2.24 MB | 2024/03/21
Accessories

Included


USB Type A to Type C Cable x1

Part number: ELE00066

Power Cord x2

Part number: ELE00039/ELE00040/ELE00041/ELE00042/ELE00043

Installation Screws x4

Part number: MEC00048
