Pro Convert IP to AIO 4K Module

Converts up to four IP streams into one 4Kp60 HDMI and SDI signal

SKU: B44010000

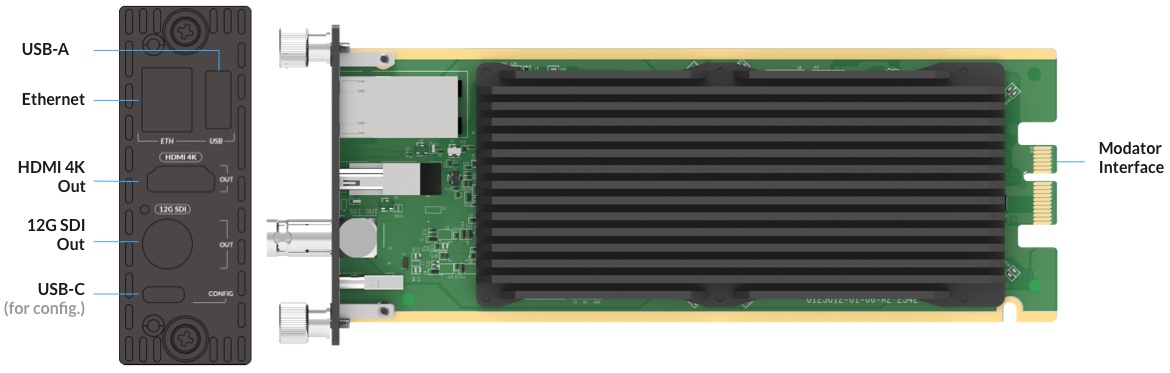

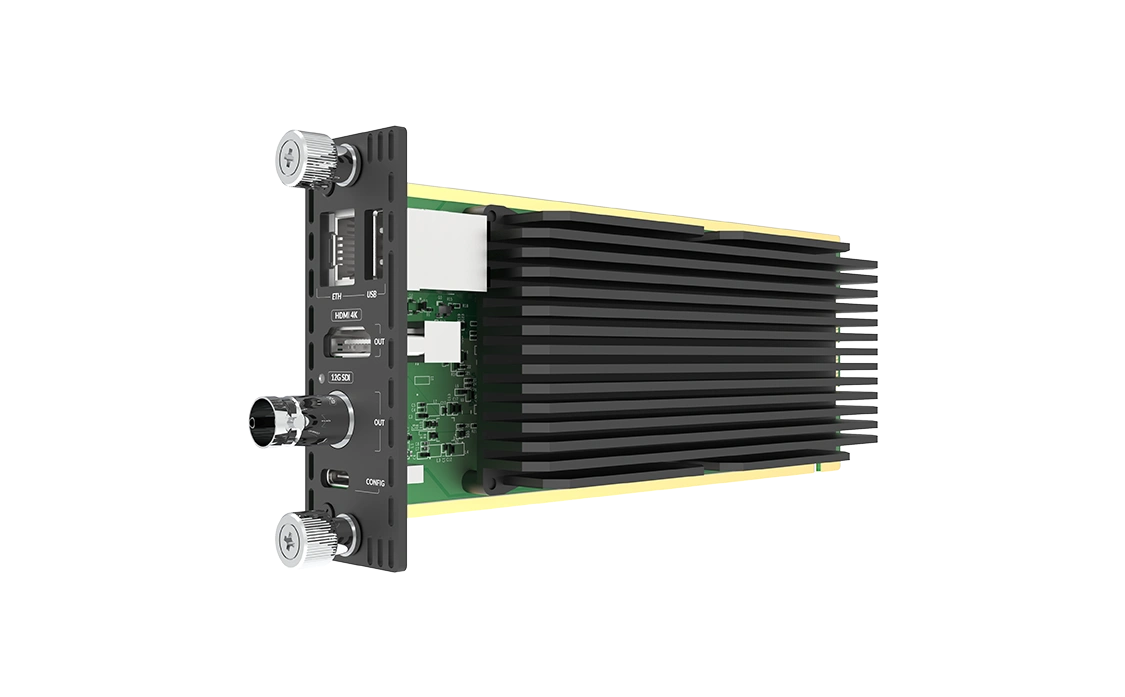

A hot-swappable module to be installed in Magewell Modator chassis
Decodes one 4Kp60 IP stream or up to four HD IP streams for a multiview output
Centrally manageable via the Modator chassis, Magewell Control Hub or Zixi ZEN Master

*Magewell also offers the standalone form-factor of the same specification.

Specifications and Features

Support NDI High Bandwidth, NDI HX2, NDI HX3, MPEG-TS over RTP/UDP/SRT/RIST, RTMP, RTSP, HLS, HTTP, and ZIXI protocols
Support multiview layouts
- For Single View, support decoding 1 stream of H.264, H.265, SpeedHQ or MPEG2 at up to 4096x2160p60
- For Picture-in-Picture, support decoding 2 streams of H.264, H.265, SpeedHQ or MPEG2 at up to 1920x1080p60 (Only one NDI High Bandwidth or one MPEG2 format video signal can be decoded.)
- For Quad view, support decoding 4 streams of H.264 or H.265 at up to 1920x1080p60
Support decoding audio in AAC, MP3, AC3, Opus, and G.711 formats
Support NDI 6.3

HDMI Output Features

SDI Output Features

Max output: 4096x2160 60fps 4:2:2 10-bit
Support 48KHz 8-channel audio output
Support Closed Caption compliant with CEA-608 or CEA-708 embedded CEA-608 standards
Support HDR PQ/HLG via ANC metadata

Configure through the touch screen of Magewell Modator chassis, Web GUI, Control Hub or Zixi ZEN Master
Support preview of output images and PTZ control
Provide HTTP APIs
LED status indicators
2-year warranty
