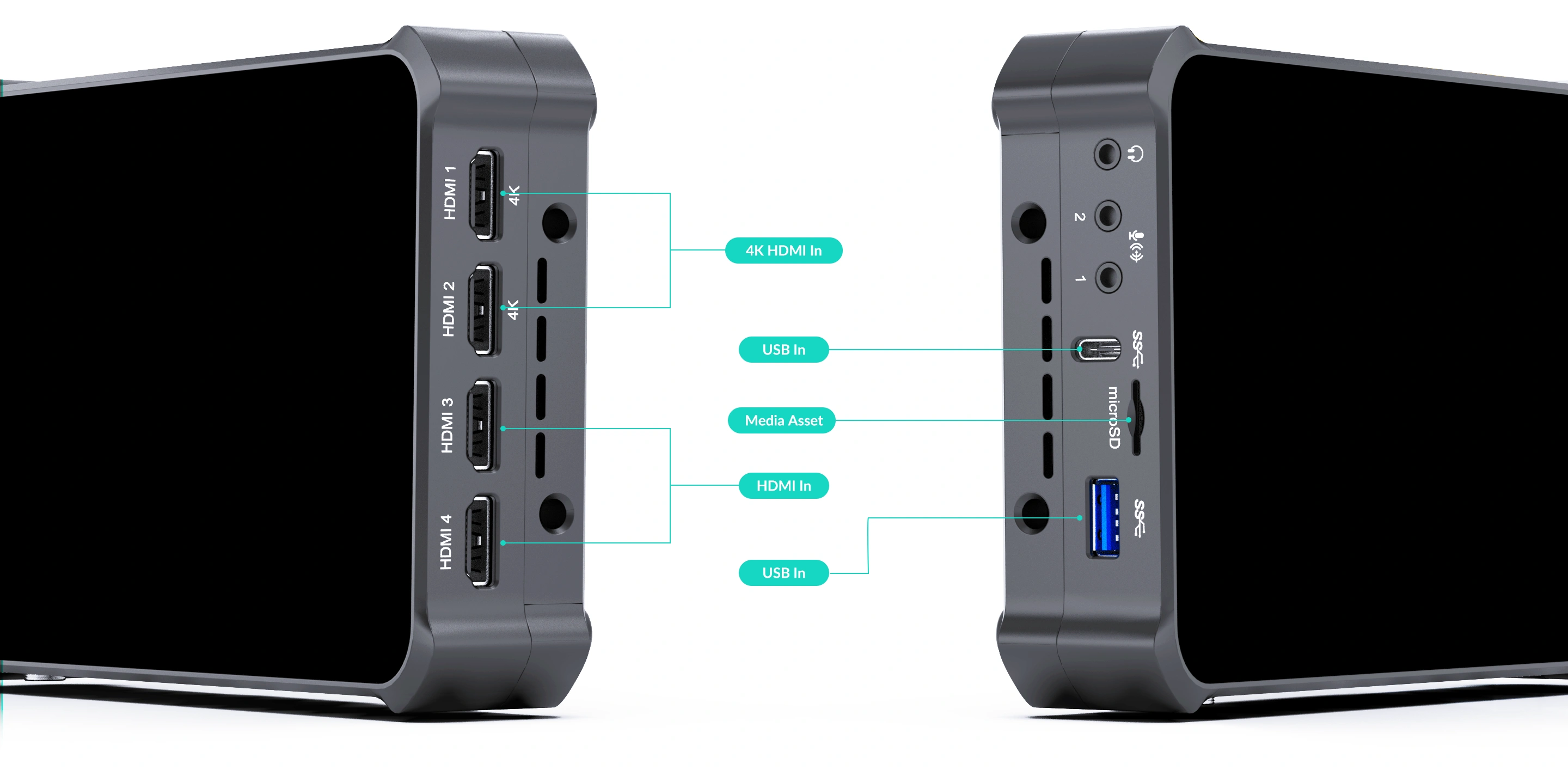

Ultra-Rich Signal Flexibility

Supporting 4K production workflows, Director Plus features four HDMI inputs, two USB AV inputs, ten simultaneous live IP sources including SRT, RTMP, RTSP, NDI® High Bandwidth and NDI HX sources, HTML webpages, multimedia sources as well as third-party apps, giving you unmatched flexibility to mix cameras, computers, remote feeds, and media files in any layout. Resize, reposition, and customize every element to craft engaging, professional scenes in seconds.
4
HDMI inputs
2
USB AV inputs
10
live IP sources
3
third-party apps

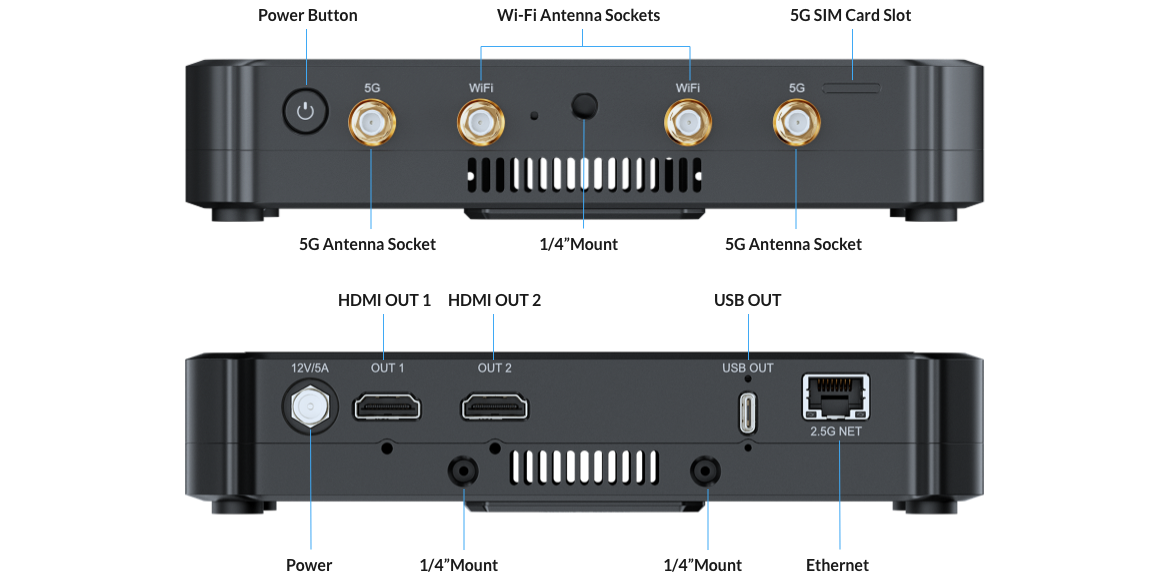

Stay Connected in Any Network

Equipped with 5G modem, Wi-Fi 6E, 2.5G Ethernet, dedicated 5G and WiFi antennas plus integrated bonding support, Director Plus maintains strong, consistent streaming even in weak or unstable network environments. From outdoor shoots to busy live events, Director Plus keeps you reliably linked, delivering smooth streaming and stable control for professional, trouble-free production.
5G modem
Ultra-Low Latency 5G Mobile Streaming
Wi-Fi 6E
Next-Gen Wi-Fi, Minimal Interference
Dedicated Antennas
High-Gain External Antennas for Maximum Signal Strength
2.5G Ethernet
2.5-Gigabit Wired for Stability
Bonding
Multi-Link Bonding Unbreakable Streaming
5G modem
Ultra-Low Latency 5G Mobile Streaming
Wi-Fi 6E
Next-Gen Wi-Fi, Minimal Interference
Dedicated Antennas
High-Gain External Antennas for Maximum Signal Strength
Bonding
Multi-Link Bonding Unbreakable Streaming
2.5G Ethernet
2.5-Gigabit Wired for Stability

Pro-Grade Streaming and Recording

Director Plus can encode video up to 2160p60 and bitrates up to 120Mbps. Productions can be streamed to popular platforms such as YouTube™ Live, Facebook™ Live, and custom destinations, with support for simultaneous streaming to up to four platforms. Content can also be recorded to local storage, SD card, or USB SSD. Four-channel independent ISO recording gives users full flexibility in post-production for replays, editing, and content repurposing.

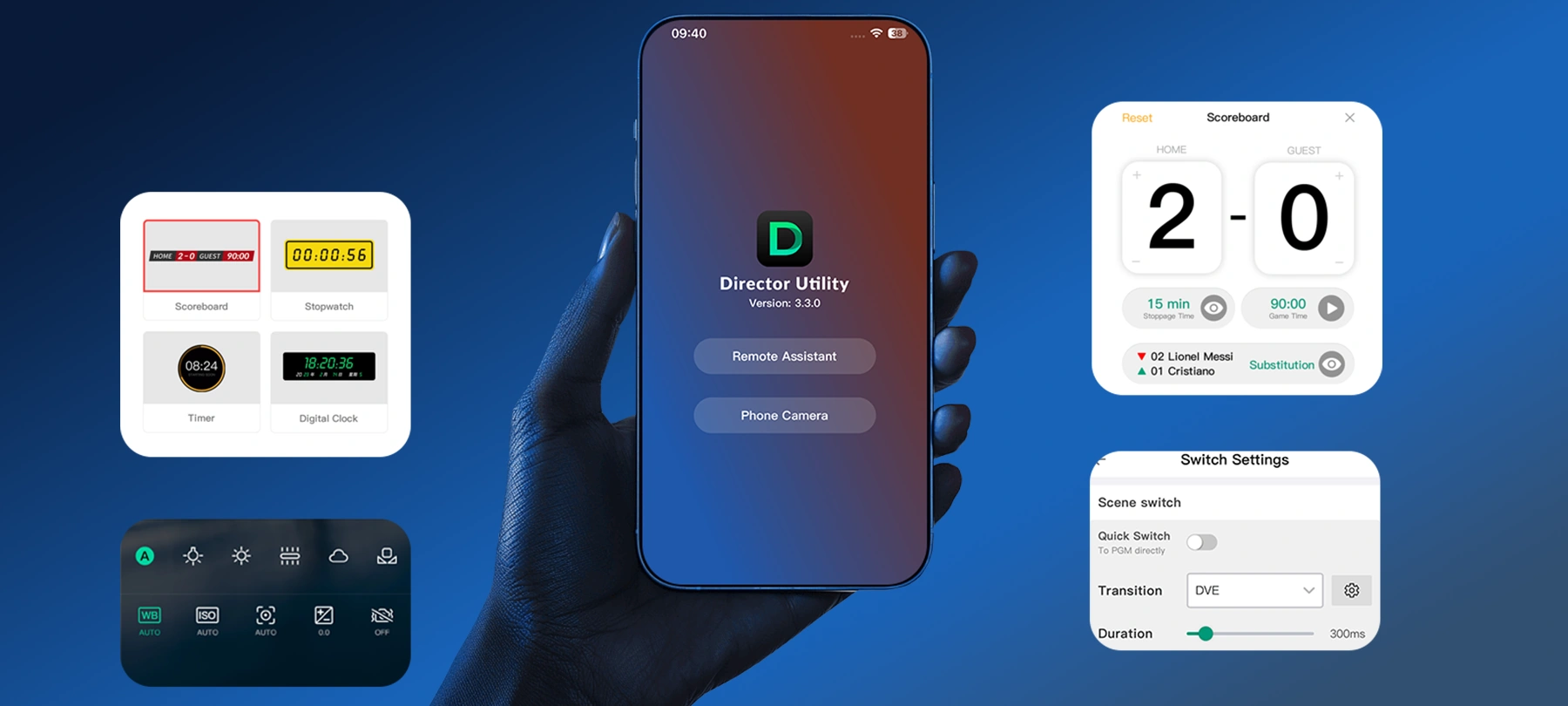

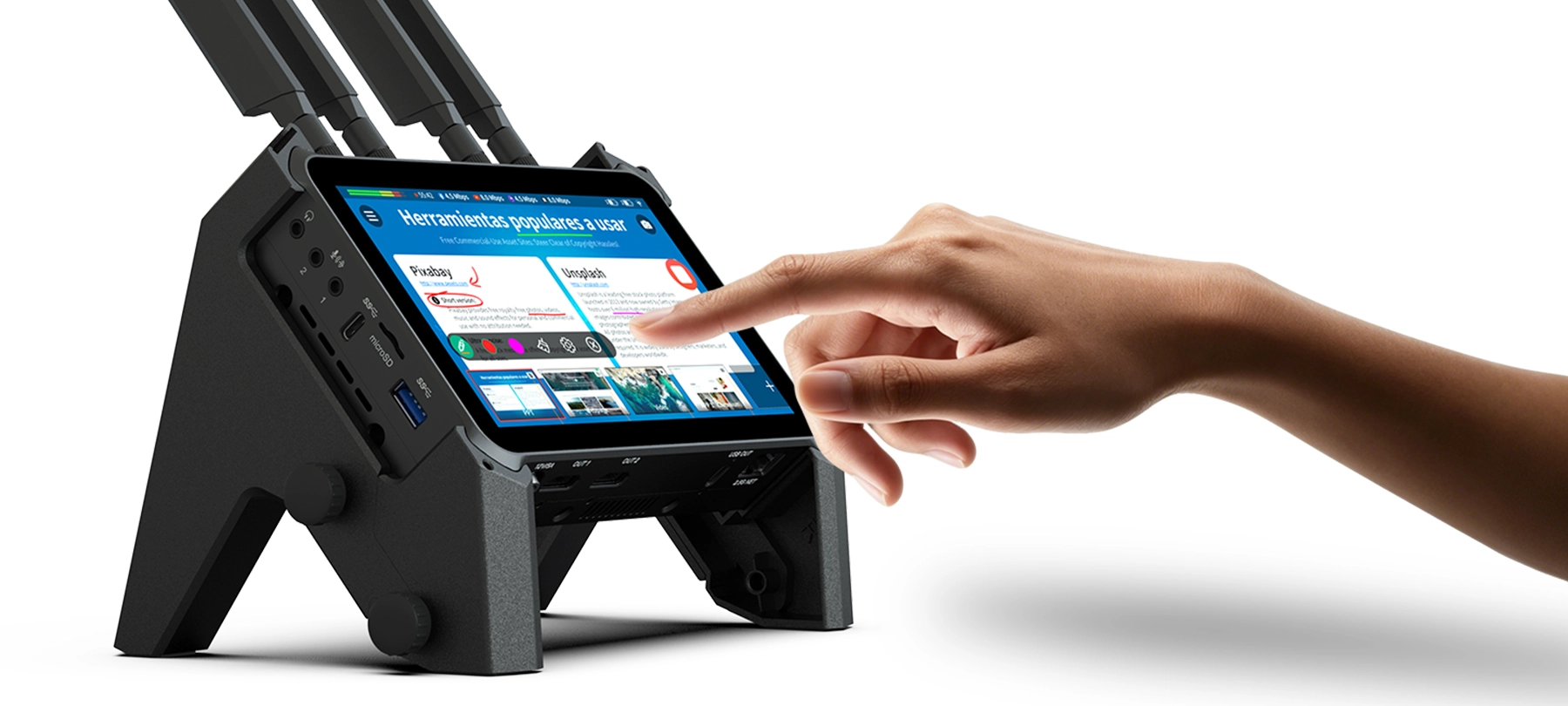

Complete Control, Your Way

Director Plus offers intuitive and flexible operation through a built-in touchscreen, Director Utility app, web GUI, third-party controllers, APIs and other control options. It supports both standalone operation and team collaboration, adapting smoothly to any production and presentation workflow with ease and efficiency.

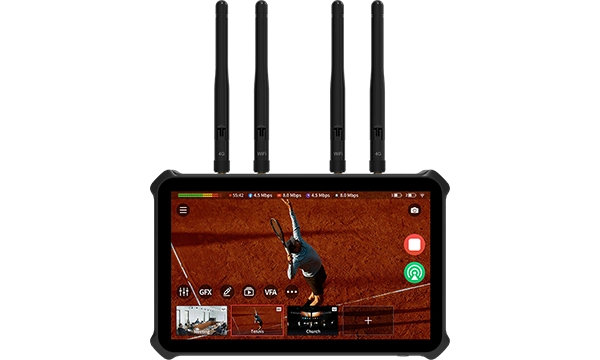

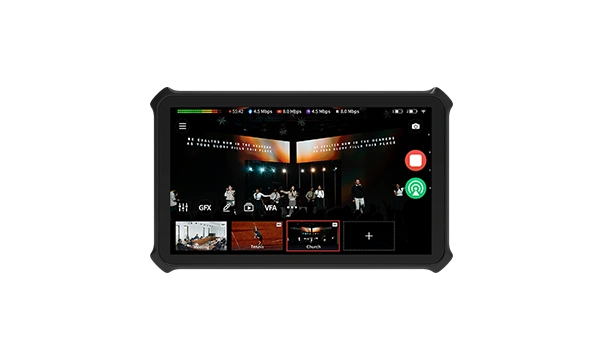

Choose Your Director Model

Director Family
3 models in total

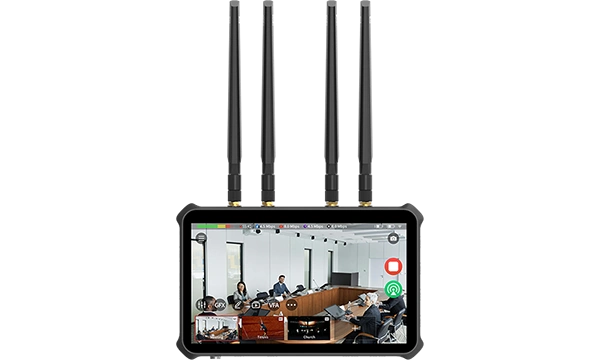

Director Plus
SKU: 552900000
Dimension and the Display
Dimension
185.2mm (L) x 117.2mm (W) x 38.5mm (H) or 7.29in (L) x 4.61in (W) x 1.52in (H)
185.2mm (L) x 117.2mm (W) x 35.5mm (H) or 7.29in (L) x 4.61in (W) x 1.4in (H)
147.2mm (L) x 90mm (W) x 28.5mm (H) or 5.79in (L) x 3.54in (W) x 1.12in (H)
Touchscreen Size (Diagonal)
7" AMOLED
7" AMOLED
5.44" AMOLED
Brightness
800nit
800nit
350nit
Contrast ratio
100000:1
100000:1
6000:1
Source Inputs
HDMI Inputs
4
2
2
USB Inputs
2
2
2
IP Inputs (NDI High Bandwidth, NDI HX3, SRT, RTMP, RTSP)
10
3
3
HTML Webpage & File-based Media Sources
MIC Audio Inputs
2
1
1
Video Input & Processing
4Kp60 Simultaneous Inputs
6
2 (automatic down-conversion)
2 (automatic down-conversion)
1080p60 Simultaneous Inputs
16
7
7
Show Resolution
4K, 1440p, 1080p
1080p
1080p
Encoding, Streaming & Recording
Maximum Encoding Bitrate
120 Mbps
30 Mbps
30 Mbps
Number of Simultaneous Streaming Platforms
4
4
4
Simultaneous Replay Channels
4
2
2
ISO Recording
4
2
2
Video Output Capabilities
HDMI Outputs
2
1
0
USB-C Output
1
1
1
Output Program/Preview/Multi-View/Duplicate Screen/HDMI
√ (HDMI & USB-C)
√ (HDMI & USB-C)
√ (USB-C)
Output Webcam/Stream/App
√ (HDMI & USB-C)
N/A
N/A
Network Connectivity & Performance
Built-in Cellular Modem (SIM card not included)
5G
4G
N/A
WiFi Standard
WiFi 6E
WiFi 5
WiFi 5
Ethernet Port Speed
2.5 Gbps
1.0 Gbps
1.0 Gbps
Additional Software Features
Third-party App Installation
Up to 3 from the whitelist
N/A
N/A
Video Follows Audio
N/A
N/A
Create Playlist of Scenes for Automated Playback
N/A
N/A
Accessories & Usability
Dedicated Stand Kit
Included
N/A
N/A
Sunhood Kit
Included
Included
Included

Product Info

Director Plus

A portable, all-in-one 4K live production and presentation system

SKU: 552900000

  • Flexible connectivity for AV sources, IP streams, media files and the third-party app
  • Enhanced networking with 5G, Wi-Fi 6E, and 2.5GbE
  • End-to-end 4K production from source ingest to streaming and recording
  • Intuitive control for seamless workflow integration

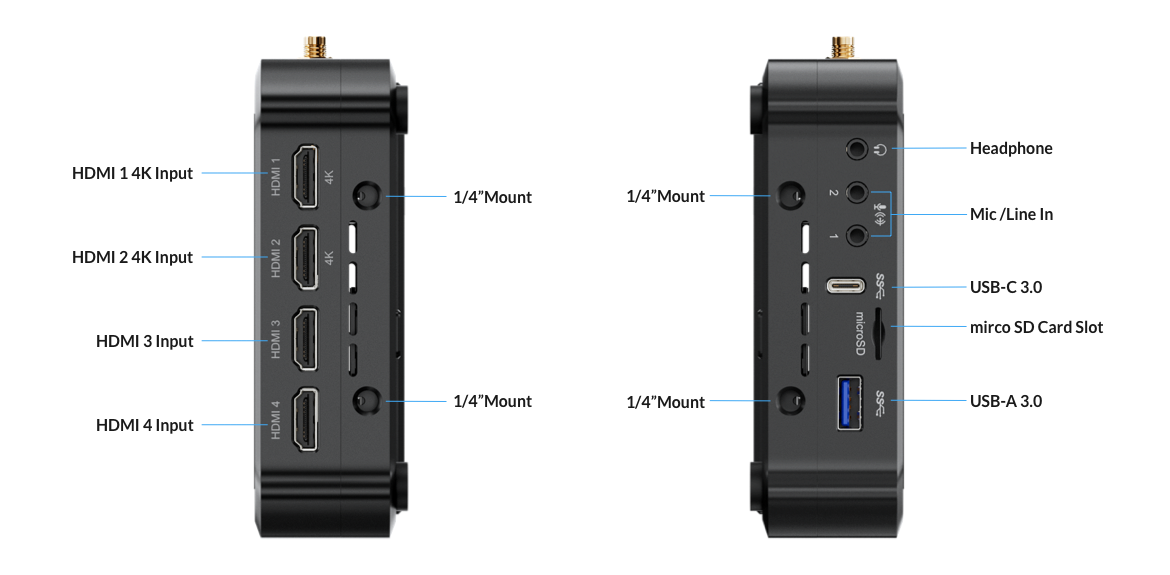

Interface

Specifications and Features

Inputs

  • 6 wired AV signals from HDMI and USB ports
  • 10 simultaneous live IP sources (SRT, RTMP, RTSP, NDI® High Bandwidth, NDI HX2, NDI HX3)
  • Media files (video, image, music, etc.)
  • Webpage Inputs
  • Up to 3 third-party apps from a whitelist

Content Creation Features

  • Shows can be created in landscape (16:9) or portrait (9:16) mode
  • Supports free composition and switch while also providing layout templates for easy creation
  • Powerful production tools including chroma keying, graphics, telestration and more
  • Display multiple GFXs, including titles, lower thirds, a scoreboard, timer, stopwatch, etc.
  • Supports autoplay and VFA (Video-follow-audio) auto switch

Streaming

  • Natively supports streaming to YouTube, Twitch and Facebook Live
  • Stream via SRT, RTMP, RTMPS, RTSP and NDI HX3
  • Supports customizing encoding parameters and selecting the encoding source for ISO streaming
  • Supports streaming to four destinations simultaneously

Recording and screenshot

  • Supports saving recording files to local storage, SD card, or USB SSD
  • Supports splitting recording files by time or size
  • Supports ISO recording, to record four of different sources simultaneously, or record multi-channel images with different quality for one source

Outputs

  • HDMI OUT: Program, Preview, Multi-View, Duplicate Screen, HDMI 1/2/3/4, Webcam 1/2, Stream, App
  • USB-C OUT: Program, Preview, Multi-View, Duplicate Screen, HDMI 1/2/3/4, Webcam 1/2, Stream, App

Included Software

Network

  • Supports network bonding
  • Ethernet: 1x RJ45 port, 10/100/1000/2500 Mbps Base-T
  • WiFi: 2.4G/5G/6G, Station and Hotspot modes supported
  • Cellular: 1* 5G SIM card slot & USB modem supported

Others

  • 7" AMOLED capacitive touchscreen
  • Warranty: 2 years for the whole device, 1 year for the screen
  • Form factor: 185.2mm (L) x 117.2mm (W) x 38.5mm (H) or 7.29in (L) x 4.61in (W) x 1.52in (H)
Firmware
Firmware
document document Download

V3.3.1010

History version Arrow Arrow

1.15 GB | 06/04/2026

Descriptions:

First release.

Plugins
Plugins
document document Download

V1.1.0

History version Arrow Arrow

954 KB | 06/04/2026

Descriptions:

Magewell Director Plugin for Stream Deck is designed to enhance production workflows by enabling seamless control of Director devices through Stream Deck, making the process significantly easier and more efficient. Read its online help for detailed introduction.

Documents
Documents Director Utility App User Manual
English | 1.78 MB | 06/04/2026
Documents Quick Start Guide for Director Plus
English | 260 KB | 06/02/2026
Documents User Manual for Director Plus
English | 5.06 MB | 06/02/2026
Documents Director Plus Web GUI User Manual
English | 2.59 MB | 06/02/2026
What's Included

tag-icon

Director Plus x1

Part number: 55290

Screw Locking Power Adapter x1

Part number: ELE00151

5G Antennas x2

Part number: ELE00147

Wi-Fi Antennas x2

Part number: ELE00148

Sunhood x1

Part number: STR00243

Thumb Screws x2

Part number: MEC00038

USB-C to USB-A Cable x1

Part number: ELE00054

USB-A to USB-C Adapter x1

Part number: ELE00079

SIM Card Ejector x1

Part number: MEC00076

Assembly Stand Kit x1

Part number: STR00317, STR00318, STR00319, STR00320

Screen Cover x1

Part number: STR00316
