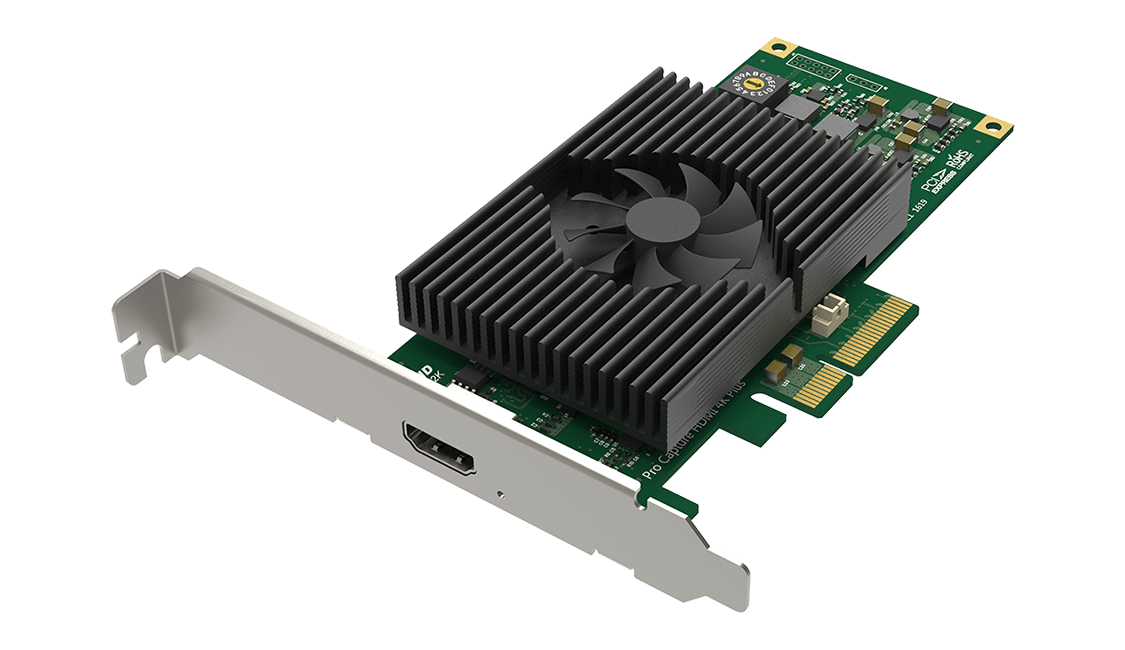

Pro Capture HDMI 4K Plus
Pro Capture HDMI 4K Plus

One-channel 4K capture card

Part number: 11150

SKU: 111500000

  • HDMI + embedded audio

Interface

Specifications and Features

Interface

Interface

Input Interface

  • HDMI x1
  • Support input resolution up to 4096×2160 pixels

Host Interface

  • PCIe Gen2 x4
VideoEngine

Video Engine

10-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

OSD

SG-DMA Transmission mode

SignalIdentification

Signal Detection & Support

Auto Detection of Input Signal Format

3D HDMI

Time Code

HDR10

SoftwareEnvironment

Software Environment

OS

  • Windows, Linux, Mac

Driver and Firmware

  • Universal Driver, Updatable Firmware

Included Software

  • Capture Express

Compatible Software

Others

Multiple Capture Streams

Low Latency Mode

Multiple Devices on One Host

Mounting Hole

Continuously Work for 24hx7

High-speed Memory

LED Status Indicator

Rotary Switch

Windows, Linux and Mac SDK

2-year Warranty

Driver

driver
document document Download

V1.3.0.4323

History version Arrow Arrow

1.89 MB | 2022.12.28 | Windows 10/11 series

Descriptions:
  • Fix the issue of incorrect aspect ratio of some SDI signals.
  • Add support for the fronted chip of SDI/HDMI of new hardware version.
  • Prolong the duration of HDMI HPD.
driver
document document Download

V1.3.0.4076

History version Arrow Arrow

1.73 MB | 2019.07.01 | Windows 7/8/8.1 series & Server System

Descriptions:

Support of Pro Capture Dual SDI 4K Plus.

driver
document document Download

V1.3.0.4390

History version Arrow Arrow

2.15 MB | 2024.04.12

Descriptions:
  1. Fix problem: Driver installation on a Linux kernel system (from 6.4 to 6.8) may fail.
driver
document document Download

V1.3.0.4177

History version Arrow Arrow

2.00 MB | 2020.04.13

Descriptions:
  1. Fix problem: In v4l2, enum_framesizes cannot get the correct information in the DISCRETE model.
  2. Fix problem: Signals cannot be locked when using ProCapture DVI 4K card to capture signals.
  3. Fix problem: Driver installation on a 5.4 or 5.6 kernel system may fail.
driver
document document Download

V1.3.0.4186

History version Arrow Arrow

1.99 MB | 2020.08.19

Descriptions:

Fix problem: driver installation may fail on an operating system with kernel version 5.7.

driver
document document Download

V1.3.0.4390

History version Arrow Arrow

1.96 MB | 2024.04.12

Descriptions:
  1. Fix problem: Driver installation on a Linux kernel system (from 6.4 to 6.8) may fail.
driver
document document Download

V1.4.44

History version Arrow Arrow

684 KB | 2024.05.06

Descriptions:

Supported macOS: 14.x

If your OS is 10.12/10.13/10.14/10.15/11/12/13, please download V1.3.4141.

driver
document document Download

V1.3.4141

History version Arrow Arrow

515 KB | 2019.12.10

Descriptions:

* Supported macOS: 10.12/10.13/10.14/10.15/11/12/13. If your OS is 14.x, please download V1.4.44.

  1. Add support for Pro Capture Dual SDI 4K Plus.
  2. Add support for NV12 format signals.
  3. Optimize CPU usage.
  4. Fix problem: in some players, the number of audio channels is not detected correctly.
  5. Fix problem: sometimes the quantization range of RGB color is not detected correctly.
  6. For Pro Capture cards with fans, add the function of automatically adjusting fan speed according to the temperature.
driver
document document Download

V1.4.44

History version Arrow Arrow

684 KB | 2024.05.06

Descriptions:

Supported macOS: 14.x

If your OS is 10.12/10.13/10.14/10.15/11.x/12.x/13.x, please download V1.3.4247.

driver
document document Download

V1.3.4247

History version Arrow Arrow

939 KB | 2021.05.18

Descriptions:

Supported Operating Systems

  • macOS* 10.12/10.13/10.14/10.15/11.x/12.x/13.x

If your OS is 14.x, please download V1.4.44.

Firmware

Firmware
History version Arrow Arrow

42.9 MB | 2020.10.29 | Windows 7 and later

Descriptions:
  1. Added firmware for the Pro Capture Dual SDI 4K Plus card.
  2. Fixed the compatibility issue with certain GIGABYTE motherboard models.
  3. This firmware applies only to Pro Capture AIO 4K Plus C/D revisions, Pro Capture AIO 4K A revision, Pro Capture AIO B/C revisions, Pro Capture Dual SDI 4K Plus A revision, Pro Capture Dual SDI A/B/C revisions, Pro Capture DVI A revision, Pro Capture HDMI 4K Plus A/D revisions, Pro Capture HDMI 4K A revision, Pro Capture HDMI A revision, Pro Capture Hexa CVBS A revision, Pro Capture Mini HDMI C revision, Pro Capture Mini SDI B revision, Pro Capture Quad HDMI B revision, Pro Capture Quad SDI B/C revisions and Pro Capture SDI A/B revisions.
Firmware
History version Arrow Arrow

6.35 MB | 2020.10.29 | Windows 7 and later

Descriptions:
  1. Fixed the compatibility issue with certain GIGABYTE motherboard models.
  2. This firmware applies only to Pro Capture Dual SDI A/B/C revisions, and Pro Capture Mini SDI B revision.
Documents
Documents User Manual for Pro Capture Family
English | 704 KB | 2023/08/23
Documents Short FAQs about Pro Capture
English | 60.5 KB | 2021/01/19
Accessories

Included


Low Profile Bracket

Part number: ACC01241

Optional

Mini Repeater 4K HDMI
