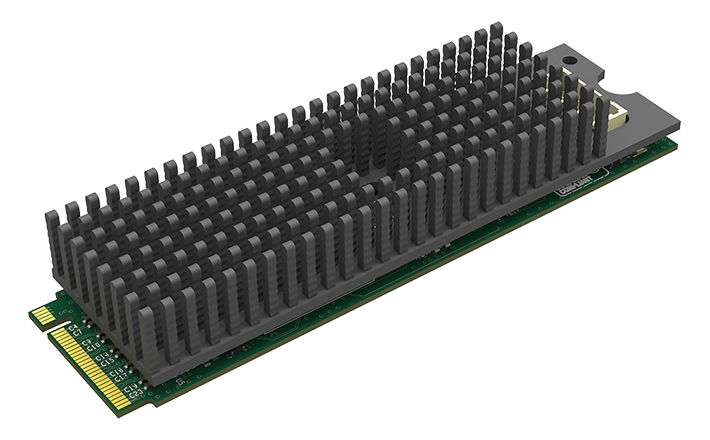

Eco Capture HDMI 4K M.2
Eco Capture HDMI 4K M.2

Single channel 4k capture card

Part number: 11524; 11520

SKU:
  • HDMI + embedded audio

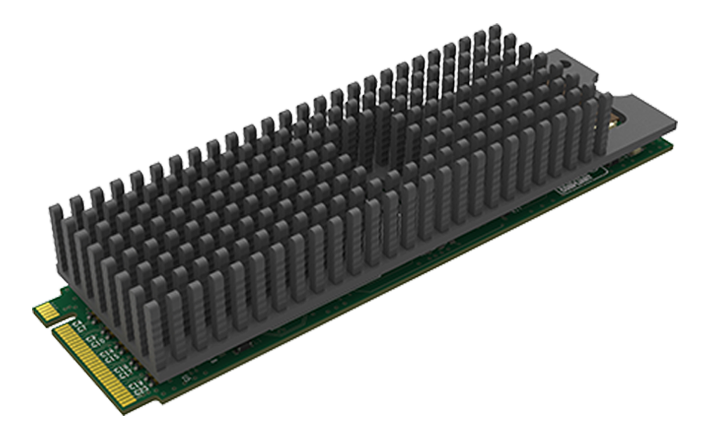

Two options are provided to support different input connectivity. Check the SKU for pictures.

Interface

Specifications and Features

Interface

Input Interface

  • HDMI x1
  • Support input resolution up to 4096×2160 pixels

Host Interface

  • M.2 (PCIe Gen2 x4)

Video Engine

  • Auto detection of input signal format
  • Color formats conversion
  • Low latency mode
  • SG-DMA transmission mode
  • Multiple replicated capture streams

Software

Others

  • 2-year warranty
  • Continuously work for 24hx7
  • LED status indicator
  • Multiple devices on one host
  • On-board dip switch to set card number
Full specifications and features
Driver
driver
document document Download

V1.3.0.4323

History version Arrow Arrow

4.29 MB | 2022.12.28 | Windows 10/11 series

Descriptions:
  • Fix the issue of incorrect aspect ratio of some SDI signals.
  • Add support for the fronted chip of SDI/HDMI of new hardware version.
  • Prolong the duration of HDMI HPD.
driver
document document Download

V1.3.0.4210

History version Arrow Arrow

4.17 MB | 2020.11.24 | Windows 7/8/8.1 series & Server System

Descriptions:
  1. Add support for Eco Capture QL-SDI 4K M.2.
  2. Add support for Eco Capture SDI 4K Plus M.2.
driver
document document Download

V1.4.187

History version Arrow Arrow

2.40 MB | 2023.03.16

Descriptions:
  1. Add support for Eco Capture AIO M.2 cards.
  2. Fix problem: Driver installation on a Linux 6.1 or 6.2 kernel system may fail.
driver
document document Download

V1.4.47

History version Arrow Arrow

2.12 MB | 2020.08.19 | Linux, ARM TX1

Descriptions:
  1. Fix problem: driver installation may fail on an operating system with kernel version 5.7.
driver
document document Download

V1.4.187

History version Arrow Arrow

2.21 MB | 2023.03.16

Descriptions:
  1. Add support for Eco Capture AIO M.2 cards.
  2. Fix problem: Driver installation on a Linux 6.1 or 6.2 kernel system may fail.
Firmware
Firmware
History version Arrow Arrow

2.39 MB | 2019.04.12 | Linux

Descriptions:

Initial release.

* for Eco Capture HDMI 4K M.2, Eco Capture Dual HDMI M.2 capture devices.

Firmware
History version Arrow Arrow

5.07 MB | 2017.12.14 | Windows 7 and later

Descriptions:

* If the user need to obtain the ANC data in SDI signal, please use firmware v1.6. If not, please use v1.5.

  1. Initial release.
  2. Add support to ANC data in SDI signals.
Documents
Documents Short FAQs about Eco Capture
English | 61.7 KB | 2020/12/04
Download
Documents User Manual for Eco Capture Family
English | 0.8 MB | 2019/01/28
Download
Accessories

Included

1 x SHD to HDMI type A breakout

Part number: ACC00070

1 x FPC to HDMI type A adapter

Part number: 90092

1 x FPC ribbon cable (20 cm)

Part number: ACC00093

Optional

Mini Repeater 4K HDMI

Learn more

* Please contact our sales or distributor if you need the FPC ribbon cable of other length.
