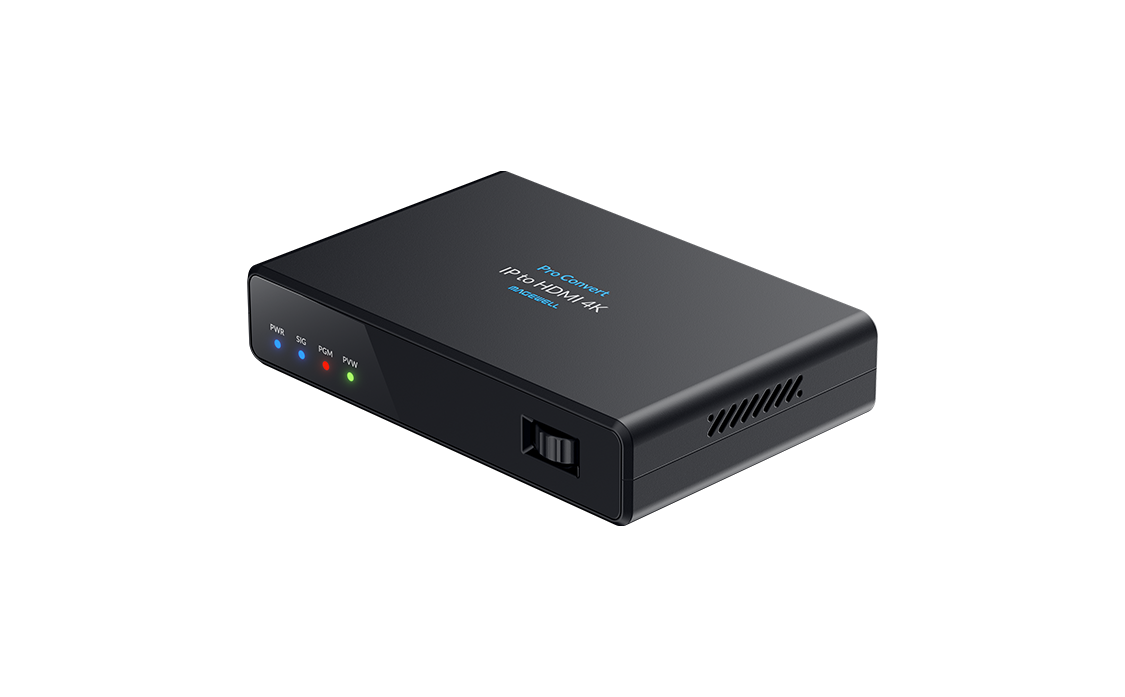

Pro Convert IP to HDMI 4K

Converts up to four IP streams into one 4Kp60 HDMI signal

SKU: 644100000

Connects baseband presentation or distribution equipment into IP-based media networks
Stays compatible with popular video formats and streaming protocols
Supports HDR PQ/HLG
Video preview, in real-time stream or MJPEG picture is available on the web GUI
Remote centralized management via Control Hub or Zixi ZEN Master

Specifications and Features

Decoding Features

Support NDI High Bandwidth, NDI HX2, NDI HX3, SRT, MPEG-TS over RTP/UDP/RIST, RTMP, RTSP, HLS, HTTP, and ZIXI protocols
Support multiview layouts
- For Single View, support decoding 1 stream of H.264, H.265, SpeedHQ or MPEG2 at up to 4096x2160p60
- For Picture-in-Picture, support decoding 2 streams of H.264, H.265, SpeedHQ or MPEG2 at up to 1920x1080p60 (Only one NDI High Bandwidth or one MPEG2 format video signal can be decoded.)
- For Quad view, support decoding 4 streams of H.264 or H.265 at up to 1920x1080p60
Support decoding audio in AAC, MP3, AC3, Opus, and G.711 formats
Support NDI 6.3

Output Features

Max output: 4096x2160 60fps 4:2:2 10-bit, or 4096x2160 60fps 4:2:2 12-bit
Support 48/96KHz 8-channel audio output
Support HDR PQ/HLG

Others

Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
Register with Control Hub or Zixi ZEN Master for remote centralized management
Support preview of output images and PTZ control
Provide HTTP APIs
LED status indicators
Form factor: 4.72 in (L) x 3.12 in (W) x 0.96 in (H) (120 mm x 79.3 mm x 24.5 mm)

Full specifications and features

Firmware

Download

V1.3.83

History version

98.0 MB | 10/09/2026

Descriptions:

Notice: Due to the change in user password storage algorithm, if you downgrade from version 1.3 to version 1.2 or earlier, user passwords will be reset. Please back up your data in advance.

New Features:

Support for UVC/UAC.
Support for front panel lock function.
Support for configuring the position and style of identifier text in OSD.
Support for split-screen or single-screen display of volume meters.
Support for NDI High Bandwidth Alpha mode.
Upgrade SRT to 1.5.6, fixing two critical security vulnerabilities CVE-2026-55869 and CVE-2026-55868.
Upgrade user password storage algorithm for improved security.

Bug Fixes:
