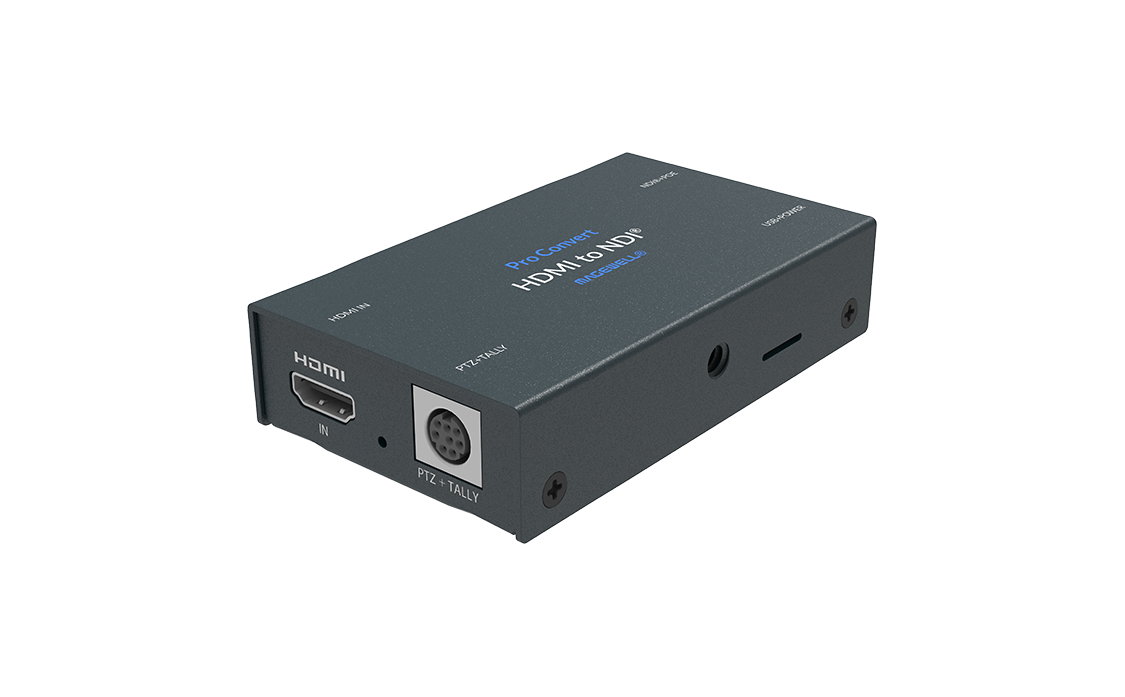

Pro Convert HDMI TX
Pro Convert HDMI TX

Converts an HD HDMI input signal into Full NDI®

Part number:
64050 US; 64052 EU; 64053 UK;
64054 AU; 64055 KR; 64056 JP

The device is supplied with different options of power adapters.

SKU:
640500000 (for US/EU/UK/AU/JP users);
640500006 KR

  • Supports up to 2048x1200 60fps input signals
  • Connects existing source equipment into NDI-enabled, IP-based media networks
  • Plug-and-play ease of use with automatic input format detection and DHCP network configuration

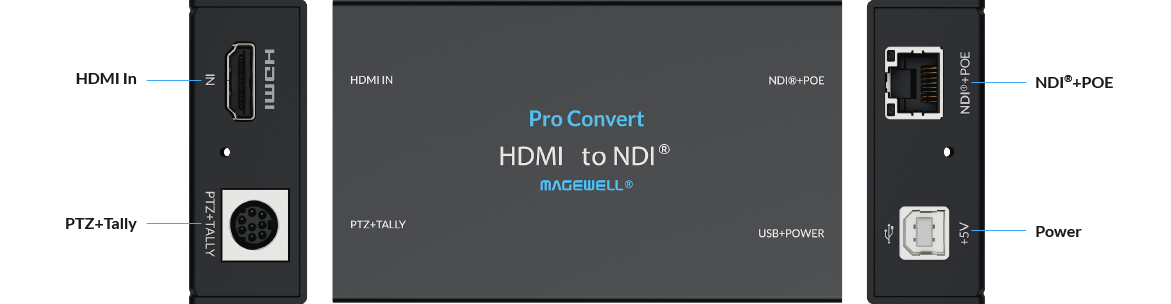

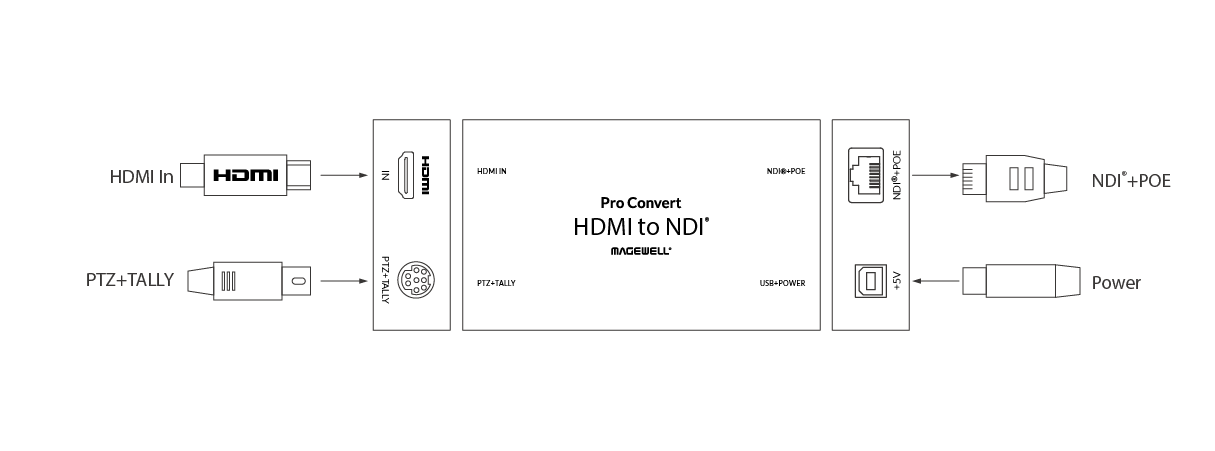

Interface

Specifications and Features

Interface

Input interface

  • HDMI x1
  • Support up to 2048x1200p60

USB Interface

  • USB 2.0 for power and data transfer

Network Interface

  • 10/100/1000 Mbps Ethernet
  • Support IEEE 802.3af PoE

Power Interface

  • DC+5V

PTZ Interface

  • Mini-DIN-8

NDI Encoding

Up to 2048x1200 60fps

Firmware

Upgradable firmware

Others

LED Indicators

Tally Lights

2-year Warranty

SD Card Slot

1/4-20 Mounting Hole

Firmware
Firmware
document document Download

V1.0.588

History version Arrow Arrow

39.1 MB | 2020.02.20

Descriptions:

a. Add "Full frame rate for low bandwidth" function, which supports outputting video with full frame rate in low-bandwidth condition.

b. Add "Audio Reference Level" function, which supports adjusting audio modes.

c. Add "Discovery Server" function, which supports discovering NDI devices across network segments.

d. Add "UDP Unicast" function, which supports retrieving NDI streams with UDP mode.

e. Add new PTZ control protocols: Visca UDP, Pelco-D, and Pelco-P.

f. Optimize the layout of the Web UI.

g. Fix some bugs.

Documents
Documents Short FAQs about Pro Convert
English | 45.7 KB | 2020/09/08
Documents User Manual for Pro Convert Decoders
English | 6.84 MB | 2020/08/06
Documents User Manual for Pro Convert Encoders
English | 9.47 MB | 2020/04/28
Documents Description of Mini-DIN8 Breakout
English | 226 KB | 2018/12/18
Accessory

Included

Power Adapter (US/EU/UK/AU/JP)x1

Part number: 98017

Power Adapter (KR) x1

Part number: 98015

USB Type A to Type B cable x1

Part number: 90065

Mini DIN8 to DIN8+DB9 cable x1

Part number: 90110

Tally Light x1

Part number: 99090

L bracket x1

Part number: 92240

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
