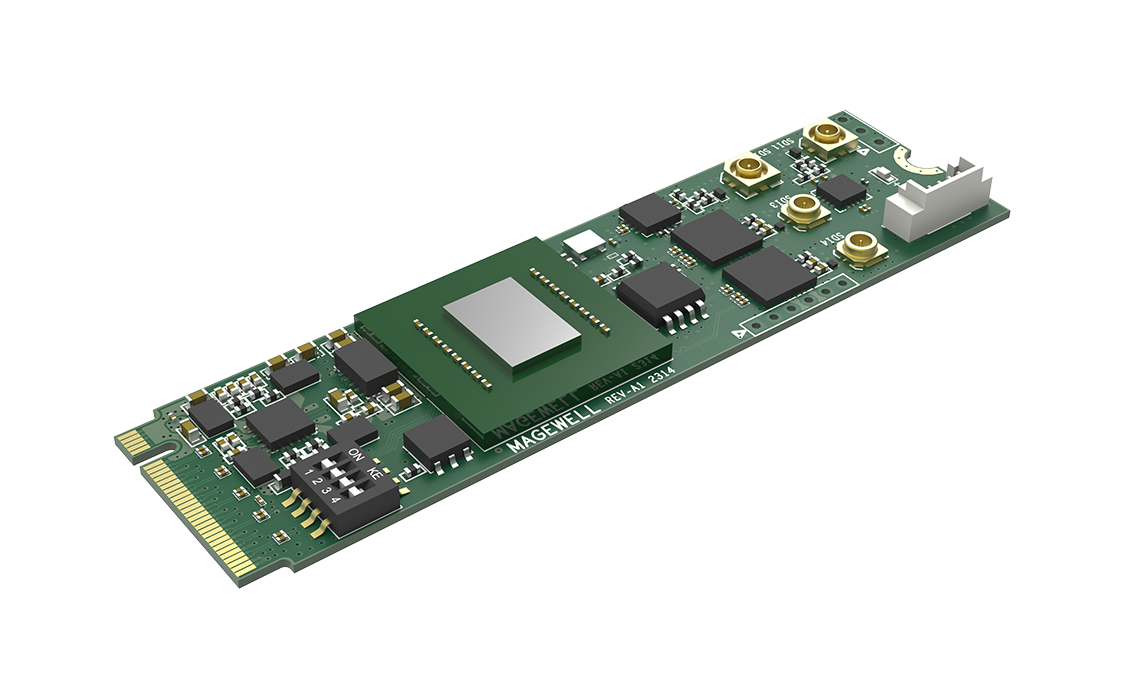

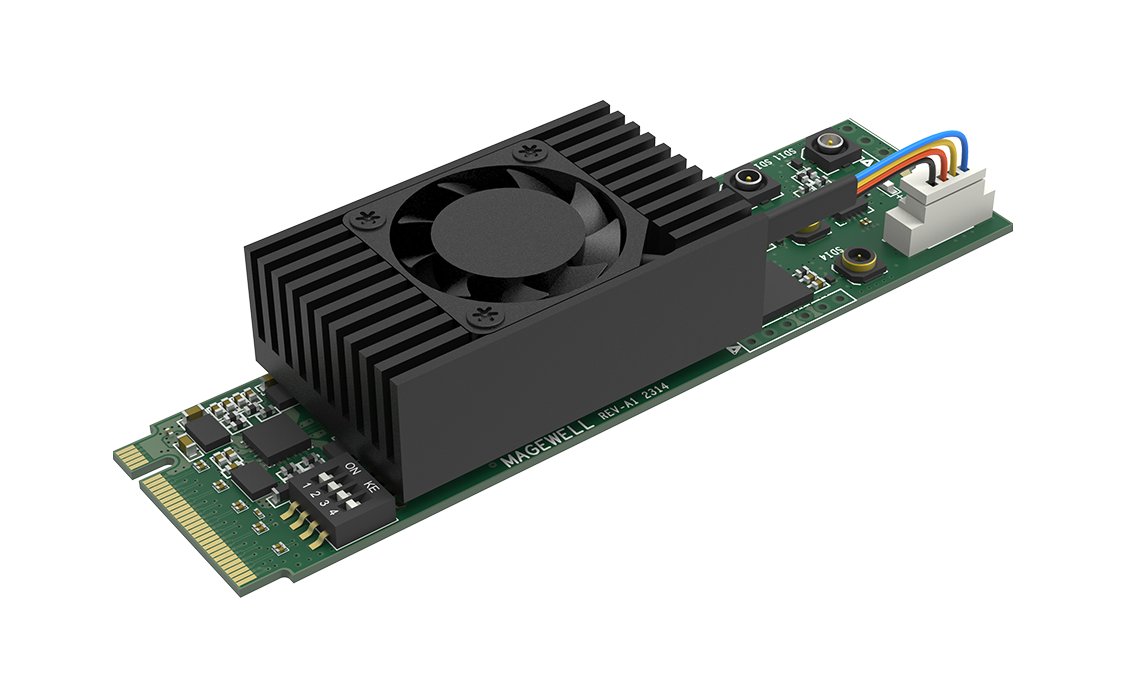

Eco Capture 12G SDI 4K Plus M.2
Eco Capture 12G SDI 4K Plus M.2

Single channel 4Kp60 capture card

SKU:
  • Captures 1-channel single-link 12G SDI or quad-link 3G SDI + embedded audio
  • High throughout for capture and supports higher frame rates
  • M.2 2280 standard size for small or portable systems

Interface

Specifications and Features

Interface

Input Interface

  • SD/HD/3G/6G/12G SDI
  • Supports input resolution up to 4096x2160 60fps

Host Interface

  • M.2 2280 Type M (PCIe Gen3 x4)

Video Engine

  • Auto detection of input signal format
  • Color formats conversion
  • Low latency mode
  • SG-DMA transmission mode
  • Multiple replicated capture streams
  • Closed caption (SDK required)

Software

Others

  • 2-year warranty
  • Continuously work for 24hx7
  • LED status indicator
  • Multiple devices on one host
  • On-board dip switch to set card number
Full specifications and features
Driver
driver
document document Download

V1.3.0.4366

History version Arrow Arrow

4.34 MB | 2023.12.05 | Windows 10/11 series

Descriptions:
  • Add support for Eco Capture HDMI 4K Plus M.2.
  • Add support for Eco Capture 12G SDI 4K Plus M.2.
driver
document document Download

V1.4.256

History version Arrow Arrow

2.41 MB | 2025.02.11

Descriptions:
  1. Fix the compatibility issue of the kernel driver for RHEL8.9.
  2. Fix the issue that driver installation on a Linux 6.4 ~ 6.8 kernel system may fail.
  3. Support the installation of drivers in a Secure Boot environment.
driver
document document Download

V1.4.256

History version Arrow Arrow

2.22 MB | 2025.02.11

Descriptions:
  1. Fix the compatibility issue of the kernel driver for RHEL8.9.
  2. Fix the issue that driver installation on a Linux 6.4 ~ 6.8 kernel system may fail.
  3. Support the installation of drivers in a Secure Boot environment.
Firmware
Firmware
History version Arrow Arrow

7.94 MB | 2024.01.18

Descriptions:

Applicable products: Eco Capture Dual SDI M.2, Eco Capture HDMI 4K Plus M.2, Eco Capture 12G SDI 4K Plus M.2

  1. Add support for Eco Capture HDMI 4K Plus and Eco Capture 12G SDI 4K Plus M.2.
  2. Fix the issue of unable locking the video signal from some signal sources.



* To use the firmware in Linux environment, follow the instruction below:

  • Method 1: In Windows environment, use the Windows upgrade tool in the zip package to upgrade the firmware, and then use the card in Linux environment after upgrade.
  • Method 2: Download the Linux upgrade tool, put the *.swf file in the Windows upgrade toolkit into the Linux update tool directory, and upgrade the firmware in Linux environment.
Documents
Documents Short FAQs about Eco Capture
English | 61.7 KB | 2020/12/04
Download
Documents User Manual for Eco Capture Family
English | 0.8 MB | 2019/01/28
Download
Accessories

Included

2 x 3G BNC Connector

Part number: ELE00018

2 x 3G SDI Cable

Part number: ELE00019

2 x 12G SDI Cable

Part number: ACC10020

2 x 12G BNC Connector

Part number: ACC10021

* Click here to check how to connect Eco Capture 12G SDI 4K Plus M.2 and BNC connectors.
