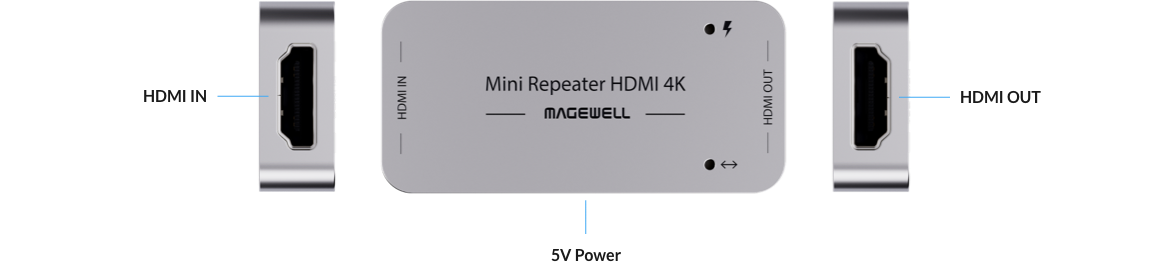

Mini Repeater HDMI 4K
Mini Repeater HDMI 4K

Problems to solve:

  • The HDMI cable is not long enough;
  • The captured image flashes, shows a wrong color or the “unsupported signal” prompts.

Part number: 43010

  • Enhances signals and extends transmission distance
  • Fixes the corrupted signal
  • Supports HDMI 2.0


Specifications and Features

Input interface

  • HDMI Type A

Input signal


Output interface

  • HDMI Type A
  • Compatible with HDMI 2.0
  • Compatible with DVI standards
  • Support 3D, 4K x 2K, HDCP 1.x/2.x

  • Support up to 594MHz pixel rate
  • Support up to 6.0 Gbps HDMI data rate
  • Receive and equalize signals
  • Eliminate signal dithering
  • Provide DDC buffer

  • Powered by HDMI signal or external power supply (5V)
  • Onboard LED shows the status of input/output
  • Power: +5V
  • Size: 58.22 mm x 27.26mm x 10.80 mm
  • Accessory: USB to 5V cable

Max Cable Length Supported (Magewell used JCE HDMI cables for tests)
For 4K signals
10m (32 feet) cable can be supported for both input and output.
For 4K signals
For 2K signals
20m (65 feet) cable can be supported at both the input and output.
For 2K signals
*Note: Please make sure that HDMI cables of high quality are used to ensure max transfer length and best capture experience.


USB to 5V Cable x1

Part number: ACC00063
