Pro Convert for NDI® to HDMI
Pro Convert for NDI® to HDMI

Converts a live NDI® stream into HD HDMI signal

SKU:
641000000 (for US/EU/UK/AU/JP users);
641000006 KR

  • Connects baseband presentation or distribution equipment into IP-based media networks
  • Decodes Full NDI and NDI|HX including earlier variants into HD HDMI
  • Up-converts the decoded HD signals to 4K for viewing on Ultra HD displays

* Magewell offers accessories to mount this model on the 1RU rack. A module-type product of the same specification is also available for use with the Magewell Modator chassis for high-density deployment.

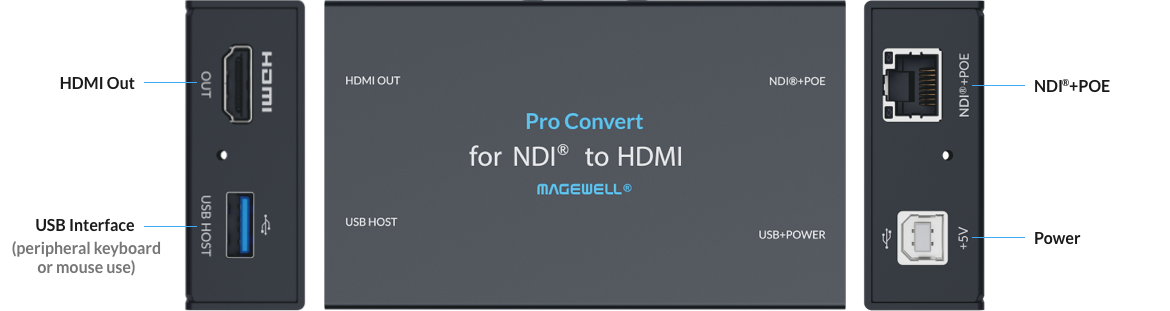

Interface

Specifications and Features

Output Features

  • Support for up to 4096x2160 60fps HDMI output (integrated up-conversion from HD sources)
  • Support for 96KHz, 16-bit 8-channel audio streams

Decoding Features

  • Support for decoding up to 2K 60fps NDI streams
  • Support for decoding full NDI® and NDI®|HX
  • Support for NDI 5.x
  • Discover NDI devices across network segments
  • Compatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP

Features & Advantages

  • Very low latency
  • Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
  • HTTP-based APIs for custom integration
  • Image flip for inverted projector installations and safe area controls
  • Automatic output optimization for target display with integrated up/down conversion
Firmware
Firmware
document document Download

V1.1.938

History version Arrow Arrow

50.3 MB | 2023.08.10

Descriptions:
  1. Support toggling on/off SSDP. When toggled off, it does not send SSDP multicast packet.
  2. Optimize Auto Reboot, supporting setting periodical auto reboot.
  3. Support HTTPS service, switching HTTPS by uploading CA certificate and CA key.
  4. Support ignoring NDI® HX video PTS, which can ensure smooth output when enabled for the NDI® HX stream with wrong time stamps.
  5. Support setting NDI® transport mode, including TCP (Uni-connection), TCP (Multi-connection), UDP (Unicast), RUDP, UDP (Multicast), which negotiates the transfer mode with the encoder.
  6. Support adding multiple NDI® discovery servers.
  7. Support setting Stream ID for SRT Listener.
  8. Support toggling on/off Decode output. When toggled off, it does not output images.
  9. "set-rndis-config" API adds the "name" parameter, which is used to modify the name of USB device.
  10. Optimize decoding compatibility, and fix known issues.
Documents
Documents Quick Start Guide for Pro Convert Decoders
English | 423 KB | 2023/06/02
Documents User Manual for Pro Convert Decoders
English | 7.60 MB | 2023/01/12
Documents Short FAQs about Pro Convert
English | 63.3 KB | 2021/01/20
Documents Description of Mini-DIN8 Breakout
English | 226 KB | 2018/12/18
Accessories

Included


Power Adapter (US/EU/UK/AU/JP)x1

Part number: ACC08010

Power Adapter (KR) x1

Part number: ACC08015

USB Type A to Type B cable x1

Part number: ACC00065

L bracket x1

Part number: 92240

Two types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
