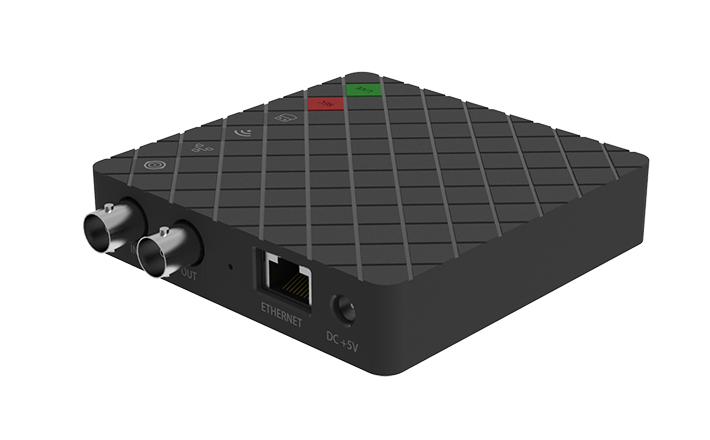

Ultra Stream SDI
Ultra Stream SDI

One-channel 3G SDI encoder

SKU:
530200000 (for US/EU/UK/AU/JP users);
530200006 KR

The device is supplied with different options of power adapters.

Original part number:
53020 (for US/EU/AU users);
53023 UK; 53025 KR; 53026 JP

  • Record and stream 1 channel of 3G SDI + embedded audio + microphone
  • Loop-through SDI + embedded audio

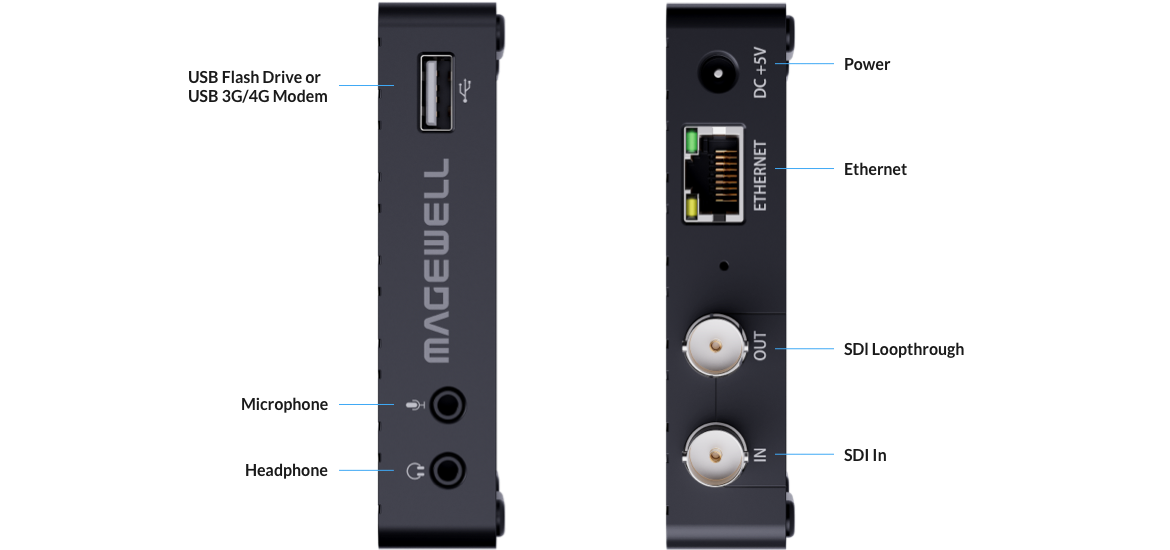

Interface

Specifications and Features

Interface

Video input interface

  • SDI x1
  • Support up to 2048x1080p60

Loop-through Interface

  • SDI x1
  • Support up to 2048x1080p60

USB Interface

  • USB 2.0 for USB Flash Drive or USB 3G/4G Modem

Audio Interface

  • Headphone Output
  • Microphone Input

Network Interface

  • Ethernet Interface

Power Interface

  • DC+5V

H.264 Encoding

Main Stream

  • Up to 1080p60

Sub Stream

  • Up to 720p30

HEVC Encoding

Record to MP4

Streaming Server

Preset

  • Youtube Live, Twitch, Facebook Live

Custom

  • RTMP, RTMPS

Software Environment

Mobile OS

  • Android, iOS

Firmware

  • Upgradable firmware

Others

LED Indicators

2-year warranty

Internal SD card

Firmware
Firmware
document document Download

V1.4.14

History version Arrow Arrow

13.6 MB | 2020.07.09

Descriptions:
  • Add support for streaming to Facebook Pages.
  • Add support for streaming to Youtube Events.
  • Add support for RTSP dual-code streaming.
  • Add 192 Kbps and 256 Kbps bitrates for AAC encoding.
  • Add 1600x900 resolution for main-stream encocding.
  • Add 8 Mbps bitrate for RTSP main-stream encocding.
  • Add 5fps/10fps frame rates, and 1.5 Mbps/2 Mbps bitrates for sub-stream encoding.
  • Add UPnP.
  • Add lock live switch.
  • Add online update switch.
  • Add settings for input/output video.
  • Export system configurations in JSON.
  • Remove quantization range.
  • Add support for no signal live.
  • Fix known problems.
Documents
Documents Quick Start Guide for Ultra Stream Family
English | 4.27 MB | 2020/07/09
Documents User Manual for Ultra Stream Family
English | 6.53 MB | 2020/07/09
Documents Short FAQs about Ultra Stream
English | 42.2 KB | 2019/11/20
Accessory

Included

Power Adapter (US/EU/AU) x1

Part number: 98017

Power Adapter (UK) x1

Part number: 98013

Power Adapter (KR) x1

Part number: 98015

Power Adapter (JP) x1

Part number: 98016

Power Cable x1

Part number: 90064

HDMI Cable x1

Part number: 90090

Four types of power adapters are provided as options to meet your need. Please choose the right part number when placing the order to our dealers. We recommend you always use the included accessories to avoid unnecessary damage to your device. Please note, the appearance of the power adapter may vary due to suppliers or batches. The images here are for reference only.
