Pro Capture Mini SDI
PRO CAPTURE Mini SDI

One-channel HD capture card

Part number:
  • Captures SD/HD/3G/ 2K SDI + embedded audio
  • Loop-through SD/HD/3G/2K SDI

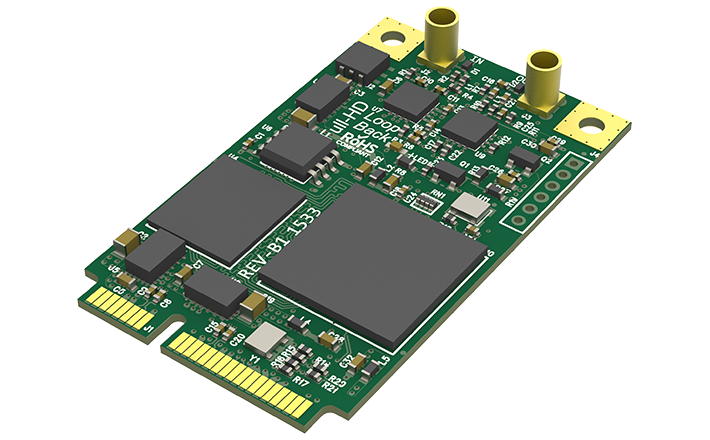

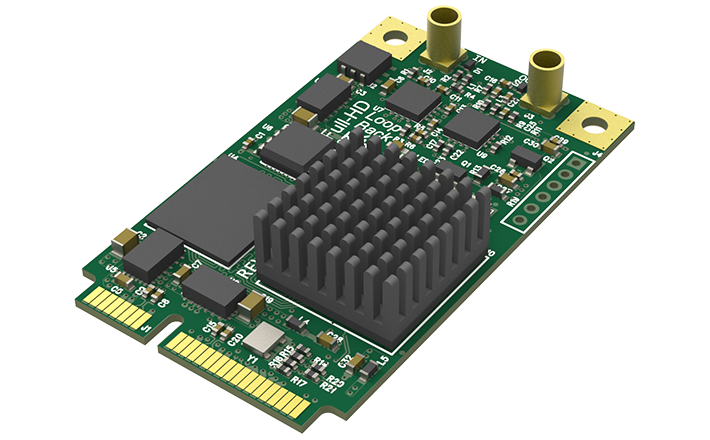

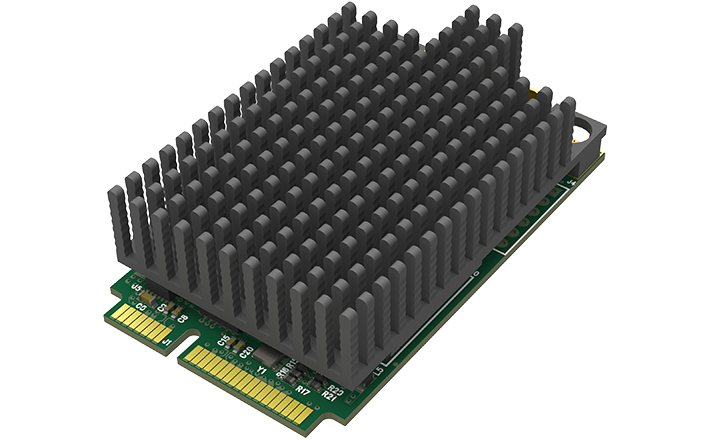

You can choose different heat sinks for the cards by clicking on the Part Number. The card with a large heat sink is Pro Capture Mini SDI LH (PN: 11131) while the card with a small heat sink is Pro Capture Mini SDI SH (PN: 11130). A card without a heat sink is Pro Capture Mini SDI (PN: 11132).

Please design your own heat management system for the chassis to make sure the internal ambient temperature meets the requirement of the operating temperature in the tech specs, especially when you don’t use a heat sink for the card.

INTERFACE

SPECIFICATIONS AND FEATURES

Interface

Interface

Input Interface

  • SD/HD/3G/2K SDI x1
  • Support input resolution up to 2048×1080 pixels

Loop-through Interface

  • SD/HD/3G/2K SDI x1
  • Support loop-through resolution up to 2048×1080 pixels

Host Interface

  • PCIe Gen2 x1
VideoEngine

Video Engine

10-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

OSD

SG-DMA Transmission mode

SignalIdentification

Signal Detection & Support

Auto Detection of Input Signal Format

Time Code

Closed Caption

SoftwareEnvironment

Software Environment

OS

  • Windows, Linux, Mac

Driver and Firmware

  • Universal Driver, Updatable Firmware

Included Software

  • Pro Capture Utility, Capture Express

Compatible Software

Others

Multiple Capture Streams

Low Latency Mode

Multiple Devices on One Host

Mounting Hole

Continuously Work for 24hx7

High-speed Memory

Windows&Linux SDK

2-year Warranty

DRIVER

driver
document document Download

V1.3.0.4030

History version Arrow Arrow

1.8 MB | 2018.11.26 | Windows7/8/8.1 series & Server System

driver
document document Download

V1.3.0.4030

History version Arrow Arrow

1.85 MB | 2018.11.26 | Windows 10

Descriptions:

1. Add support to Pro Capture Hexa CVBS.
2. Add support to Pro Capture Dual HDMI 4K Plus LT.

driver
document document Download

V1.2.0.3950

History version Arrow Arrow

2.19 MB | 2018.08.07

Descriptions:

Fix the problem that the driver installation fails on CentOS 7.5.

driver
document document Download

V1.2.0.3912

History version Arrow Arrow

2.00 MB | 2018.05.24

Descriptions:
  1. Add support to HDMI audio with no audio status.
  2. Add support to HDMI HDR info-frame by Pro Capture HDMI 4K Plus and Pro Capture AIO 4K Plus.
driver
document document Download

V1.2.0.3912

History version Arrow Arrow

1.99 MB | 2018.05.24

Descriptions:
  1. Add support to HDMI audio with no audio status.
  2. Add support to HDMI HDR info-frame by Pro Capture HDMI 4K Plus and Pro Capture AIO 4K Plus.
driver
document document Download

V1.2.0.3912

History version Arrow Arrow

1.99 MB | 2018.05.24

Descriptions:
  1. Add support to HDMI audio with no audio status.
  2. Add support to HDMI HDR info-frame by Pro Capture HDMI 4K Plus and Pro Capture AIO 4K Plus.
driver
document document Download

V1.2.3922

History version Arrow Arrow

498 KB | 2018.07.11

Descriptions:
  1. Add support to HDMI signal with no audio status.
  2. Add support to Pro Capture SDI 4K Plus.
  3. Add support to Pro Capture HDMI 4K Plus LT.
  4. Tested OS:
    • OS X 10.10
    • OS X 10.11
    • macOS 10.12
    • macOS 10.13
FIRMWARE

Firmware
History version Arrow Arrow

27.2 MB | 2017.12.19

Descriptions:
  1. Add support to Closed Caption and ANC data in SDI signal.
  2. Fix the problem of HDMI output signal (4K@60fps, 4:4:4) of Pro Capture HDMI 4K Plus (Hardware version A).
  3. This firmware is applicable to Pro Capture AIO 4K Plus (Hardware Version C/D), Pro Capture AIO 4K (Hardware version A), Pro Capture AIO (Hardware version C), Pro Capture Dual SDI (Hardware Version B/C), Pro Capture HDMI 4K Plus (Hardware version A), Pro Capture Mini SDI (Hardware version B), Pro Capture Quad SDI (Hardware version C), Pro Capture SDI 4K Plus (Hardware Version C/D), Pro Capture SDI (Hardware version B). Click here to see how to check the hardware version of Magewell product.
Firmware
History version Arrow Arrow

5.34 MB | 2017.12.19

Descriptions:

* Pro Capture Family Firmware (low power consumption version) is applicable to Pro Capture Mini SDI and Pro Capture Dual SDI. Please be noted that using this firmware, you may not be able to access to some advanced features or high performance.

  1. Add support to Closed Caption and ANC data in SDI signal.
  2. This firmware is applicable to Pro Capture Dual SDI (Hardware Version B/C), Pro Capture Mini SDI (Hardware version B). Click here to see how to check the hardware version of Magewell product.
DOCUMENTS
Documents Product Catalogue
English | 37.9 M | 2017/08/29
Documents User Manual of Pro Capture Family
English | 1.04 M | 2016/11/01
Documents Tech Specs of Pro Capture Family
English | 805 KB | 2016/10/19
