MPEG-TS over SRT

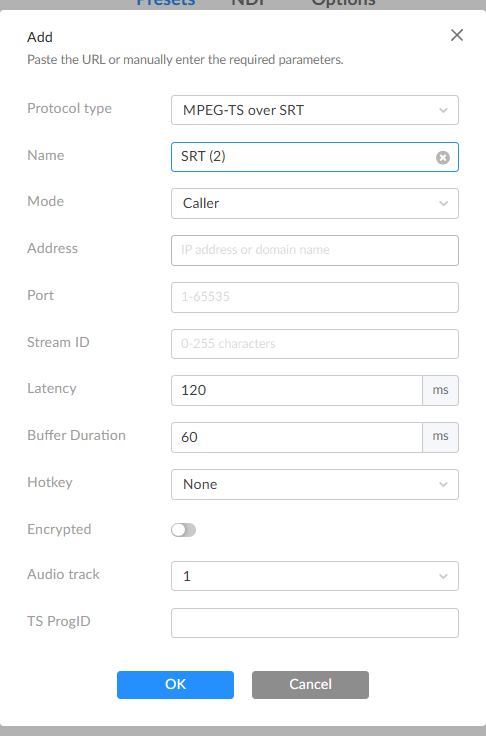

Click the Sources tab to configure.

You can directly paste the URL, and the device will automatically parse and add the source. You can also manually specify each parameter. Parameters can also be configured manually.

  • Protocol Type: Set to MPEG-TS over SRT.
  • Name: Specify a task name to facilitate management of multiple presets.
  • Mode: Set the mode to Caller or Listener. The decoder can act as an SRT Caller to pull the stream from a remote SRT Listener; alternatively, it can function as an SRT Listener to receive the data stream.
  • Address: Only required in Caller mode. If the SRT Listener and SRT Caller are on the same local area network (LAN), enter the private IP address of the SRT Listener on the LAN. If the SRT Listener and the SRT Caller are in different network environments, enter the public IP address of the SRT Listener.
  • Port: Enter the SRT port number.
  • Stream ID: Specify the Stream ID; the value range is 0 to 512 characters. It must be identical to the Stream ID of the transmitter.
  • Latency: Range 20~5000 ms, default 120 ms.
  • Buffer Duration: Range 1–5000 ms, default 60 ms. To ensure smooth video output, it is recommended that the buffer time is longer than the Jitter time displayed in Dashboard. You can reduce the buffer time when the task has high low-latency requirements. Use the default value if there are no special requirements.
    It is recommended to set the buffer time greater than the Jitter value shown in Dashboard. For tasks requiring high low-latency performance, reduce the buffer time. Use the default value if no special requirements apply.
  • Encryption: Optional encryption setting.
  • Password: Enter the encryption password if Encryption is enabled.
  • Hotkey No hotkey by default. When configured, a connected keyboard can be used for quick source switching. This function is disabled when Profile is enabled.
  • Audio Track: Default 1, optional 1–8 tracks.
  • TS ProgID: Program ID (Program Number) is an identifier that represents a logical program (service) within an MPEG Transport Stream, range 1–10000000, default empty.
  • OK: Save the current settings.
